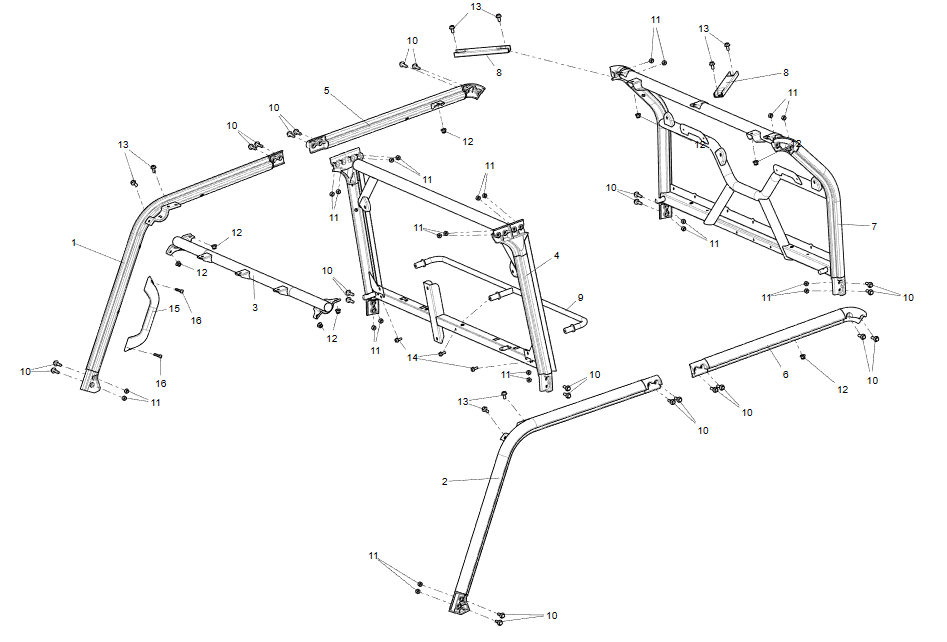

Top beam assembly TOP BEAM

Top beam assembly TOP BEAM

#

Item Name

Price

Qty

1

RIGHT A-PILLAR ASSY(BLACK)

U03-C122000-FB0-00

$326.00

1

RIGHT A-PILLAR ASSY(GREEN)

U03-C122000-FG0-00

$351.00

1

RIGHT A-PILLAR ASSY(RED)

U03-C122000-FR0-00

$326.00

2

LEFT A-PILLAR ASSY(BLACK)

U03-C121000-FB0-00

$326.00

2

LEFT A-PILLAR ASSY(GREEN)

U03-C121000-FG0-00

$326.00

2

LEFT A-PILLAR ASSY(RED)

U03-C121000-FR0-00

$351.00

3

A-PILLAR CONNECTION ASSY(BLACK)

U03-C123000-FB0-00

$257.00

3

A-PILLAR CONNECTION ASSY(GREEN)

U03-C123000-FG0-00

$257.00

3

A-PILLAR CONNECTION ASSY(RED)

U03-C123000-FR0-00

$257.00

4

FRONT REAR BEAM ASSY(BLACK)

U03-C131000-FB0-00

$1,137.00

4

FRONT REAR BEAM ASSY(GREEN)

U03-C131000-FG0-00

$1,137.00

4

FRONT REAR BEAM ASSY(RED)

U03-C131000-FR0-00

$1,137.00

5

REAR RIGHT ROOF BEAM ASSY(BLACK)

U03-C142000-FB0-00

$243.00

5

REAR RIGHT ROOF BEAM ASSY(GREEN)

U03-C142000-FG0-00

$243.00

5

REAR RIGHT ROOF BEAM ASSY(RED)

U03-C142000-FR0-00

$243.00

6

REAR LEFT ROOF BEAM ASSY(BLACK)

U03-C141000-FB0-00

$243.00

6

REAR LEFT ROOF BEAM ASSY(GREEN)

U03-C141000-FG0-00

$243.00

6

REAR LEFT ROOF BEAM ASSY(RED)

U03-C141000-FR0-00

$243.00

7

REAR BACK BEAM ASSY(BLACK)

U03-C143000-FB0-00

$1,247.00

7

REAR BACK BEAM ASSY(GREEN)

U03-C143000-FG0-00

$1,247.00

7

REAR BACK BEAM ASSY(RED)

U03-C143000-FR0-00

$1,247.00

8

U01 TOP BAR REAR LOWER SUPPORT PIPE

U01C10001002

$42.00

9

REAR HANDLE(BLACK)

U03-C132000-DB0-00

$96.00

10

BOLT M10×1.25×35

GBT005789028

$1.00

11

NUT M10×1.25

BG061852-10125-ZA1

$1.00

12

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$1.00

13

HEXAGON FLANGE BOLT M10×1.25×20

GBT005789025

$1.00

14

HEXAGON FLANGE BOLT M8×20

GBT005789015

$1.00

15

U01 PASSENGER HANDLE ASSY

U01C10010001

$43.00

16

SCREWS M8×25

GBT000701016

$1.00
