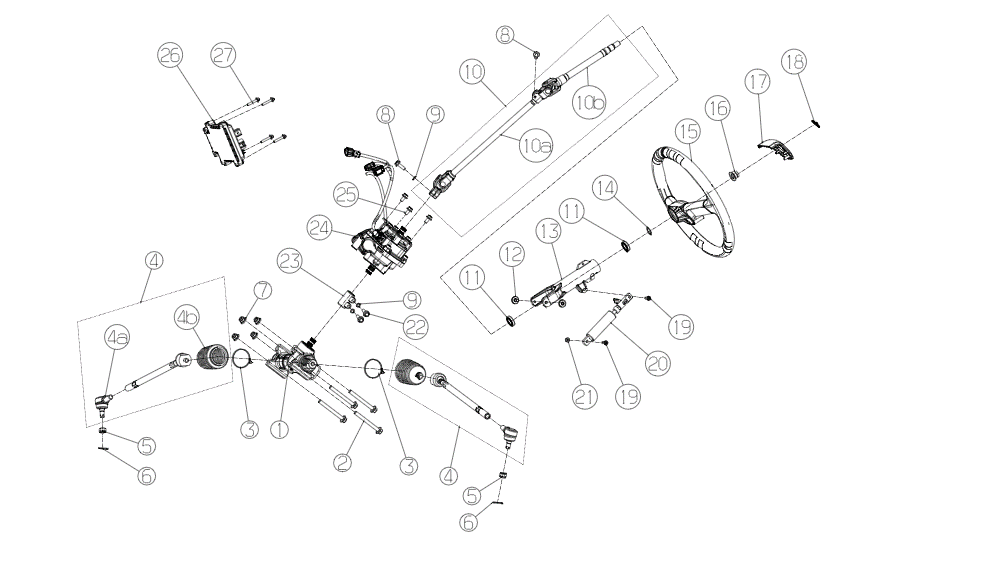

Steering System

Steering System

#

Item Name

Price

Qty

1

STEERING GEAR ASSY

U09-F110001-000-00

$258.44

2

BOLT M10×1.25×95

GBT005789037

$2.73

3

LIVE BUCKLE CABLE TIE 250×5

T05000001006

$0.91

4

STEERING TIE ROD

U01F12100001

$121.94

4a

TIE ROD END LINK

U01F12120001

$58.24

4b

DUST COVER

U01F12101001

$29.57

5

HEXAGON SLOTTED THIN NUT M12

GBT009459002

$1.82

6

COTTER 3.2×25

GBT000091008

$0.91

7

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

8

BOLT M8×25

GBT005789096

$0.91

9

WASHER 8

GB0000093004

$0.91

10

STEERING SHAFT COMPLETE ASSY

U01F13200001

$210.21

10a

LOWER STEERING SHAFT

U01F13210001

$118.30

10b

UPPER STEERING SHAFT

U01F13220001

$126.49

11

BEARING 61804-2RS

GBT000276001

$11.83

12

BOLT M8

S01F10002001

$1.82

13

STEERING COLUMN

U01F15001001

$60.06

14

CIRCLIP 20

GBT000894008

$0.91

15

U01 STEERING WHEEL

U01F16100001

$107.38

16

NUT M14×1.5

GBT061832006

$1.82

17

STEERING WHEEL UPPER COVER

U01F16001001

$10.92

18

30*23MM ALUMINUM BRUSHED LOGO

A01L10025001

$9.10

19

STEP BOLT M6×24

T03000005004

$0.91

20

STEERING COLUMN ADJUSMENT SHOCK

U01F17100001

$60.06

21

NUT M6

GBT061831002

$0.91

22

HEXAGON FLANGE BOLT M8×30

GBT005789017

$0.91

23

EPS CONNECTION SLEEEVE

U05F13001001

$40.95

24

EPS motor assy

U01F13100001

$1,341.34

25

HEXAGON FLANGE BOLT M8×16

GBT005789014

$0.91

26

EPS controller

U09M06100002

$876.33

27

HEXAGON FLANGE BOLT M6×35

GBT005789011

$0.91
