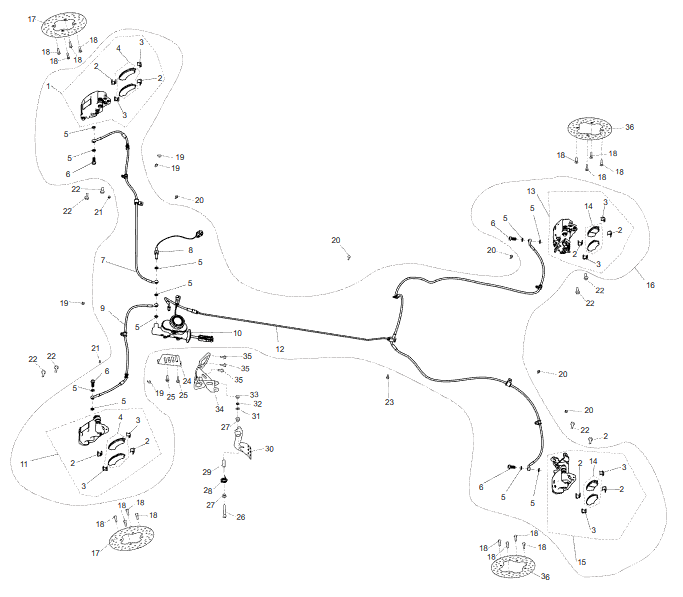

Service braking system BRAKING SYSTEM

Service braking system BRAKING SYSTEM

#

Item Name

Price

Qty

1

U01 FR BRAKE ASSY

U01E11200001

$263.00

2

S05_BRAEK PAD CLIP

S05E15C50001

$2.00

3

S05_BRAEK PAD CLIP A

S05E15C60001

$2.00

4

S03_Front brake pad assembly

S03E15A20001

$48.00

5

GASKET

A03E11012001

$1.00

6

BOLT INNER OIL

A03E11011001

$11.00

7

U01 FR BRAKE OIL PIPE

U01E11700001

$104.00

8

HYDRAULIC INDUCTION SWITCH

A03E11005001

$34.00

9

U01 FL BRAKE OIL PIPE

U01E11600001

$80.00

10

Foot brake main pump assy

U03-E115000-000-00

$243.00

11

FRONT LEFT BRAKE ASSEMBLY

U01E11100001

$274.00

12

Rear brake hose

U03-E118000-000-00

$388.00

13

U05 RL BRAKE ASSY

U05E11300001

$375.00

14

S05_Rear brake pad assembly

S05E15C20001

$54.00

15

U05 RR BRAKE ASSY

U05E11400001

$375.00

16

Hydraulic brake assy

U03-E110000-000-00

$2,146.00

17

U01_FRONT BRAKE DISCφ248, PCD120

U01E10001002

$60.00

18

BOLT,FRONT BRAKE DISC

A03E10004001

$2.00

19

HEXAGON FLANGE BOLT M6×12

GBT005789006

$1.00

20

BOLT M6×16

GBT005789007

$1.00

21

NUT M6

GBT061771002

$1.00

22

BOLT M10×1.25×25

GBT005789026

$1.00

23

HEXAGON FLANGE BOLT M6×20

GBT005789008

$3.00

24

U01 MAIN BRAKE PUMP GUARD BOARD

U01C00003002

$15.00

25

HEXAGON FLANGE BOLT M8×25

GBT005789016

$1.00

26

SCREW M10×1.25×65

GBT000701008

$3.00

27

NYLON BUSHING

A03E12201001

$1.00

28

U01 brake pedal spring 65Mn

U01E12003001

$2.00

29

U01 lining sleeve

U01E12004001

$4.00

30

Brake pedal(Black)

U03-E120100-DB0-00

$49.00

31

WASHER 10

GBT000971005

$1.00

32

WASHER 10 (2)

GB0000093005

$1.00

33

NUT M10×1.25

GBT006170001

$1.00

34

Brake pedal holder assy

U03-E120300-DB0-00

$42.00

35

HEXAGON FLANGE BOLT M8×20

GBT005789015

$1.00

36

U01_REAR BRAKE DISCφ240, PCD140

U01E10002002

$55.00
