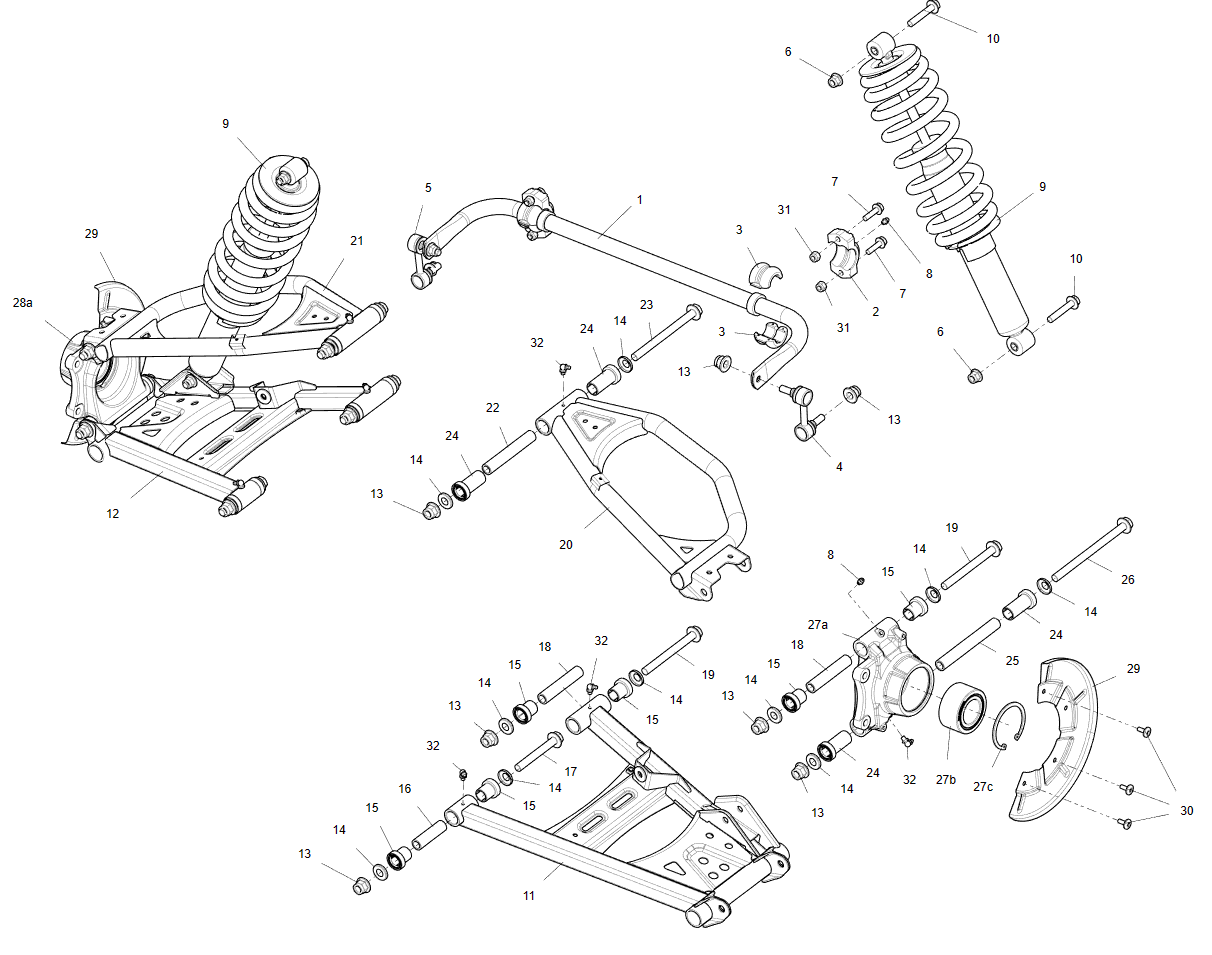

Rear Suspension Assembly

Rear Suspension Assembly

#

Item Name

Price

Qty

1

REAR BALANCE BAR ASSY (SOLID PIECE)

U09-D261001-FB0-00

$85.54

2

REAR SWAY BAR MOUNTING BRACKET

U01D26002001

$23.66

3

FRONT BALANCE BAR BUFFER BLOCK

U01D16001001

$7.28

4

Right stabilizer bar ball pin assembly

S01D10820001

$62.79

5

Left stabilizer bar ball pin assembly

S01D10810001

$62.79

6

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

7

HEXAGON FLANGE BOLT M8×30

GBT005789017

$0.91

8

GLIB M6

GBT001152001

$0.91

9

Rear shock absorber assembly

U03-D250000-0B0-00

$189.28

9.1

Rear shock absorber assembly (2)

U03-D250010-0B0-00

$266.63

10

HEXAGON FLANGE BOLT M10×1.25×55

GBT005789032

$1.82

11

Rear left lower rocker arm(Red)

U03-D231003-FR0-00

$207.48

11

Rear left lower rocker arm(Green)

U03-D231004-FG0-00

$207.48

11

Rear left lower rocker arm(Black)

U03-D231005-FB0-00

$207.48

12

Rear right lower rocker arm(Red)

U03-D241003-FR0-00

$207.48

12

Rear right lower rocker arm(Green)

U03-D241004-FG0-00

$207.48

12

Rear right lower rocker arm(Black)

U03-D241005-FB0-00

$207.48

13

NUT M12×1.25

GBT061832010

$0.91

14

A- ARM DUST COVER

U09D20008001

$0.91

15

A- ARM BUSHING

U09D20006001

$3.55

16

A- ARM SLEEVE

U09D10001001

$4.55

17

BOLT M12×1.25×90

GBT005789103

$3.64

18

U09 REAR ROCKER ARM LINER 1

U09D20003001

$5.46

19

BOLT M12×1.25×120

GBT005789105

$4.55

20

Rear left upper rocker arm(Red)

U03-D211003-FR0-00

$141.05

20

Rear left upper rocker arm(Green)

U03-D211004-FG0-00

$141.05

20

Rear left upper rocker arm(Black)

U03-D211005-FB0-00

$141.05

21

Rear right upper rocker arm(Red)

U03-D221003-FR0-00

$141.05

21

Rear right upper rocker arm(Green)

U03-D221004-FG0-00

$141.05

21

Rear right upper rocker arm(Black)

U03-D221005-FB0-00

$141.05

22

UPPER A-ARM SLEEVE

U09D20005001

$6.37

23

BOLT M12×1.25×145

GBT005789106

$4.55

24

UPPER A-ARM BUSHING

U09D20007001

$3.55

25

REAR HUB LOWER SLEEVE

U09D20004001

$8.19

26

BOLT M12×1.25×170

GBT005789107

$5.46

27

Rear left wheel axle support

U09D20010001

$197.47

27a

RL HUB

U09D20011001

$140.14

27b

HUB BEARING(DAC4007237-2ZC1)

JBT010238004

$80.99

27c

CIRCLIP 72

GBT000893006

$1.82

28

Rear right wheel axle support

U09D20020001

$197.47

28a

RR HUB

U09D20021001

$140.14

29

REAR BRAKE DUST SHIELD

U09D20001002

$36.63

30

HEXAGON SOCKET LARGE PAN HEAD BOLT M6×16

T03000007002

$0.91

31

NUT M8

GBT008892004

$0.91

32

90°Grease Fitting

T07000001007

$0.91
