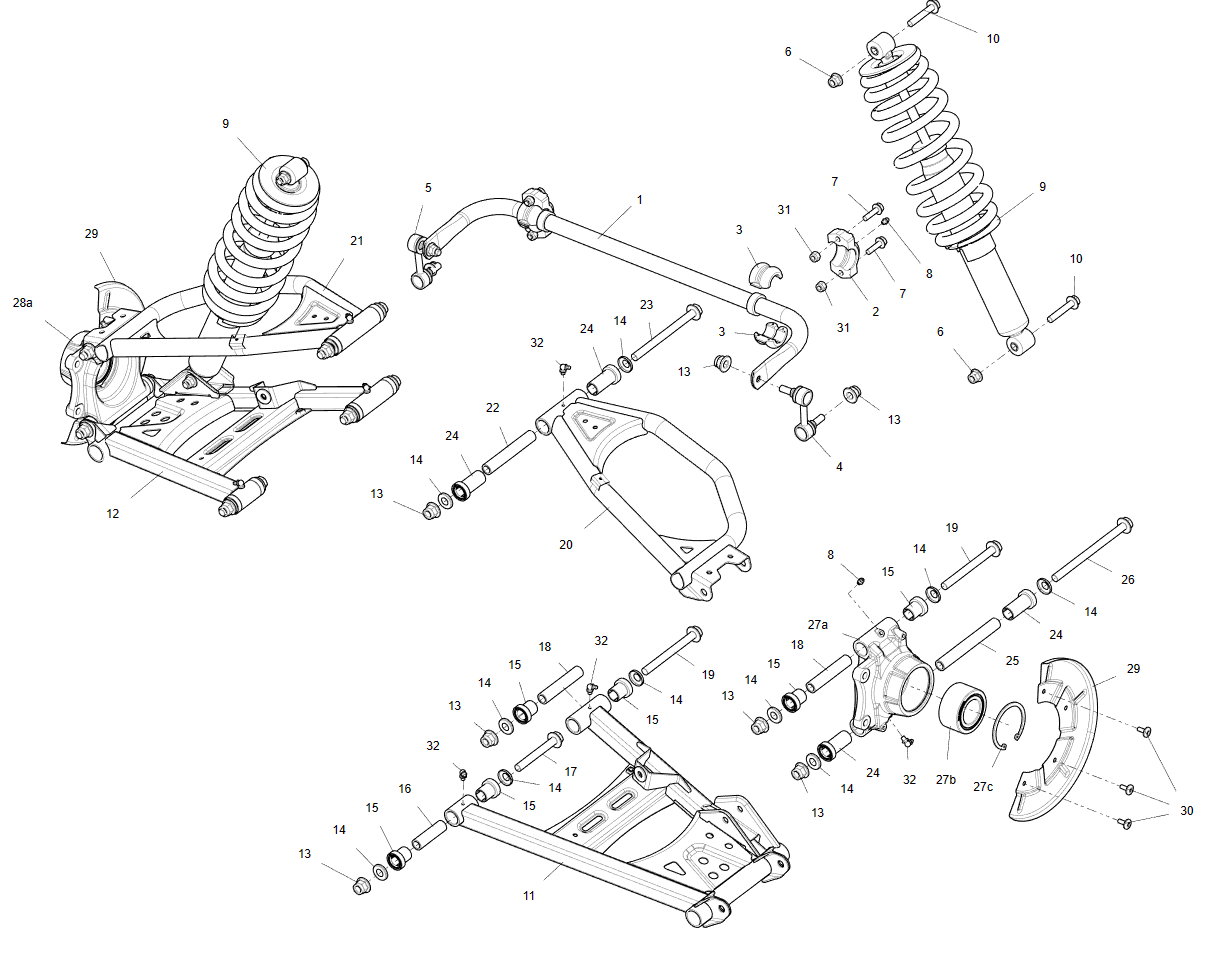

Rear Suspension Assembly

Rear Suspension Assembly

#

Item Name

Price

Qty

1

REAR BALANCE BAR ASSY (SOLID PIECE)

U09-D261001-FB0-00

$98.00

2

REAR SWAY BAR MOUNTING BRACKET

U01D26002001

$28.00

3

FRONT BALANCE BAR BUFFER BLOCK

U01D16001001

$9.00

4

Right stabilizer bar ball pin assembly

S01D10820001

$76.00

5

Left stabilizer bar ball pin assembly

S01D10810001

$76.00

6

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$1.00

7

HEXAGON FLANGE BOLT M8×30

GBT005789017

$1.00

8

GLIB M6

GBT001152001

$1.00

9

Rear shock absorber assembly

U03-D250000-0B0-00

$311.00

9.1

Rear shock absorber assembly (2)

U03-D250010-0B0-00

$439.00

10

HEXAGON FLANGE BOLT M10×1.25×55

GBT005789032

$2.00

11

Rear left lower rocker arm(Red)

U03-D231003-FR0-00

$240.00

11

Rear left lower rocker arm(Green)

U03-D231004-FG0-00

$240.00

11

Rear left lower rocker arm(Black)

U03-D231005-FB0-00

$240.00

12

Rear right lower rocker arm(Red)

U03-D241003-FR0-00

$240.00

12

Rear right lower rocker arm(Green)

U03-D241004-FG0-00

$240.00

12

Rear right lower rocker arm(Black)

U03-D241005-FB0-00

$240.00

13

NUT M12×1.25

GBT061832010

$1.00

14

A- ARM DUST COVER

U09D20008001

$1.00

15

A- ARM BUSHING

U09D20006001

$2.00

16

A- ARM SLEEVE

U09D10001001

$5.00

17

BOLT M12×1.25×90

GBT005789103

$5.00

18

U09 REAR ROCKER ARM LINER 1

U09D20003001

$6.00

19

BOLT M12×1.25×120

GBT005789105

$5.00

20

Rear left upper rocker arm(Red)

U03-D211003-FR0-00

$163.00

20

Rear left upper rocker arm(Green)

U03-D211004-FG0-00

$163.00

20

Rear left upper rocker arm(Black)

U03-D211005-FB0-00

$163.00

21

Rear right upper rocker arm(Red)

U03-D221003-FR0-00

$163.00

21

Rear right upper rocker arm(Green)

U03-D221004-FG0-00

$163.00

21

Rear right upper rocker arm(Black)

U03-D221005-FB0-00

$163.00

22

UPPER A-ARM SLEEVE

U09D20005001

$8.00

23

BOLT M12×1.25×145

GBT005789106

$6.00

24

UPPER A-ARM BUSHING

U09D20007001

$2.00

25

REAR HUB LOWER SLEEVE

U09D20004001

$10.00

26

BOLT M12×1.25×170

GBT005789107

$7.00

27

Rear left wheel axle support

U09D20010001

$228.00

27a

RL HUB

U09D20011001

$162.00

27b

HUB BEARING(DAC4007237-2ZC1)

JBT010238004

$94.00

27c

CIRCLIP 72

GBT000893006

$2.00

28

Rear right wheel axle support

U09D20020001

$228.00

28a

RR HUB

U09D20021001

$162.00

29

REAR BRAKE DUST SHIELD

U09D20001002

$22.00

30

HEXAGON SOCKET LARGE PAN HEAD BOLT M6×16

T03000007002

$1.00

31

NUT M8

GBT008892004

$1.00

32

90°Grease Fitting

T07000001007

$2.00
