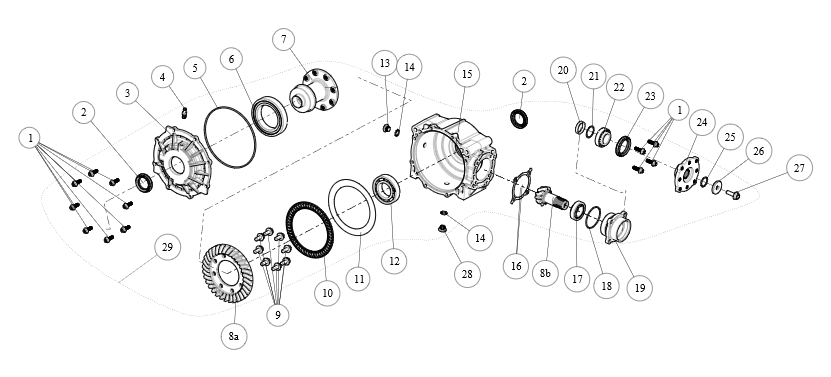

Rear AXLE WITH DIFF

Rear AXLE WITH DIFF

#

Item Name

Price

Qty

1

HEXAGON FLANGE BOLT M8×25

Q01F40201001

$1.82

2

OIL SEAL 37×55×7

Q01F40600001

$11.83

3

REAR AXLE COVER

Q02R40200001

$84.63

4

BREATHING JOINT

Q01F41300001

$12.65

5

RECTANGULAR GASKET 180×185×3

Q01R40500001

$7.28

6

DEEP GROOVE BALL BEARING 6015-Z

GBT000276017

$50.96

7

Differential spool

Q02R30100001

$207.48

8

DRIVE&DRIVEN BEVEL GEAR KIT

Q02R20100000

$551.46

9

HEXAGON FLANGE BOLT M10×1.0×20

GBT005789055

$0.91

10

NEEDLE ROLLER BEARING AXK 130X170X5

Q01R40700001

$36.40

11

LIMIT LINER

Q01R40800001

$7.28

12

DEEP GROOVE BALL BEARING 6209

GBT000276016

$29.12

13

PLUG M14

F02C10008001

$2.73

14

O-RING 13.8×2.5

F01G00005001

$0.91

15

REAR AXLE SHELL

Q02R40100001

$172.90

16

DRIVE GEAR ADJUSTING PAD(0.3)

Q01R10200001

$1.82

16

DRIVE GEAR ADJUSTING PAD(0.4)

Q01R10200002

$1.82

16

DRIVE GEAR ADJUSTING PAD(0.5)

Q01R10200003

$1.82

16

DRIVE GEAR ADJUSTING PAD(0.6)

Q01R10200004

$1.82

16

DRIVE GEAR ADJUSTING PAD(0.7)

Q01R10200005

$1.82

17

TAPERED ROLLER BEARING 32006

GBT000297001

$30.94

18

O-RING SEAL 61.5*2.65

Q01R41200001

$1.82

19

DRIVE GEAR SHAFT SEAT

Q01R40400001

$23.66

20

SPACER,SECTOR GEAR

Q01R10400001

$3.64

21

CLEARANCE ADJUSTING PAD(0.3)

Q01R10300001

$0.91

21

CLEARANCE ADJUSTING PAD(0.4)

Q01R10300002

$0.91

21

CLEARANCE ADJUSTING PAD(0.5)

Q01R10300003

$0.91

21

CLEARANCE ADJUSTING PAD(0.6)

Q01R10300004

$0.91

21

CLEARANCE ADJUSTING PAD(0.7)

Q01R10300005

$0.91

22

TAPERED ROLLER BEARING 33006

GBT000297002

$50.96

23

OIL SEAL 44×60×7

F01F20503001

$12.74

24

FLANGE,TRANSMISSION SHAFT

Q01R40300001

$91.91

25

O-RING SEAL 25×2.65

Q01R41100001

$0.91

26

FLAT WASHER10.5×39×6

Q01R40900001

$3.64

27

HEXAGON FLANGE BOLT M12×1.25×30

GBT005789027

$1.82

28

ENGINE DRAIN PLUG M14

F01G00200001

$5.02

29

REAR AXLE ASSY(NO DIFF,NO ABS,FOUR )

Q02R00000002

$1,661.66
