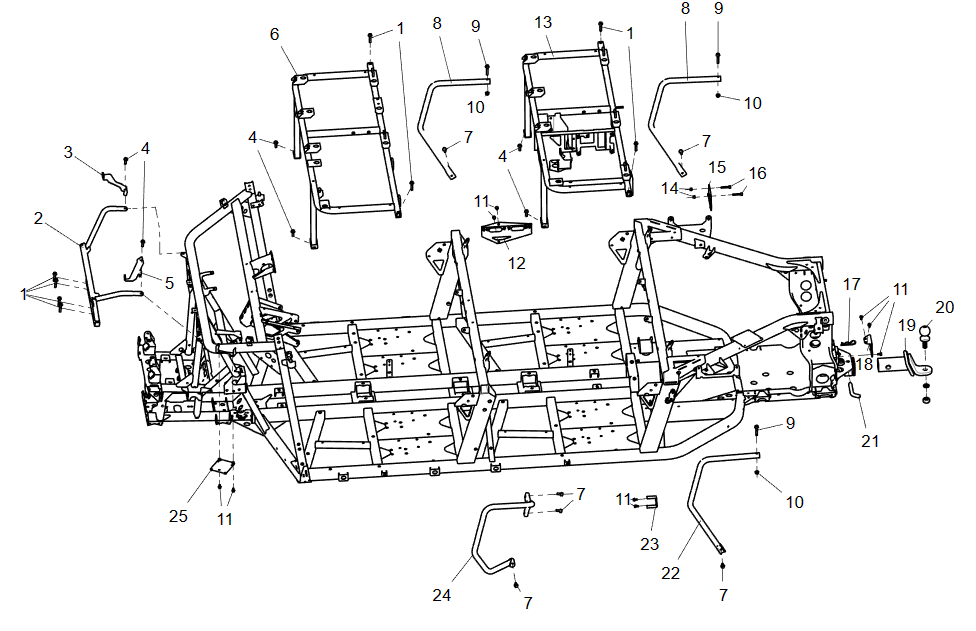

Metal structural parts Metal structural parts

Metal structural parts Metal structural parts

#

Item Name

Price

Qty

1

HEXAGON FLANGE BOLT M8×40

GBT005789019

$2.00

2

Front bracket assy(Black)

U03-C070000-DB0-00

$108.00

3

HEADLIGHT BRACKET RIGHT

U09C24100002

$14.00

4

HEXAGON FLANGE BOLT M8×25

GBT005789016

$1.00

5

HEADLIGHT BRACKET LEFT

U09C23100002

$14.00

6

Front seat lower bracket assy

U03-C030000-DB0-00

$304.00

7

HEXAGON FLANGE BOLT M8×20

GBT005789015

$1.00

8

Right handle guard tube(Black)

U01C00005002

$66.00

9

HEXAGON FLANGE BOLT M8×45

GBT005789020

$1.00

10

NUT M8

GBT061831003

$1.00

11

HEXAGON FLANGE BOLT M6×12

GBT005789006

$1.00

12

RECTIFIER MOUNTING BRACKET ASSEMBLY

U01-C000030-DB0-00

$17.00

13

Rear seat lower bracket assy

U03-C032000-DB0-00

$399.00

14

NUT M6

GBT061831002

$1.00

15

CONTROLLER SUPPORT LOF

U01C00060002

$34.00

16

HEXAGON FLANGE BOLT M6×40

GBT005789012

$1.00

17

LOCK PIN 12

QCT000623002

$1.00

18

U01 Trailer power mounting bracket ASSY

U01C00070002

$7.00

19

WELD DRAG (BLACK)

S01C20300002

$111.00

20

Tow ball head assy_SGW51

U01R21100001

$66.00

21

U01 TOWING HOOK BOLT 16

U01R21300002

$10.00

22

Rear left handle guard tube

U03-C040000-DB0-00

$53.00

23

STARTING RELAY BRACKET

U01-C000040-DB0-00

$7.00

24

Driver's hand guard assy

U03-C060000-DB0-00

$64.00

25

T-BOX MOUNTING PLATE

U01C01280002

$41.00
