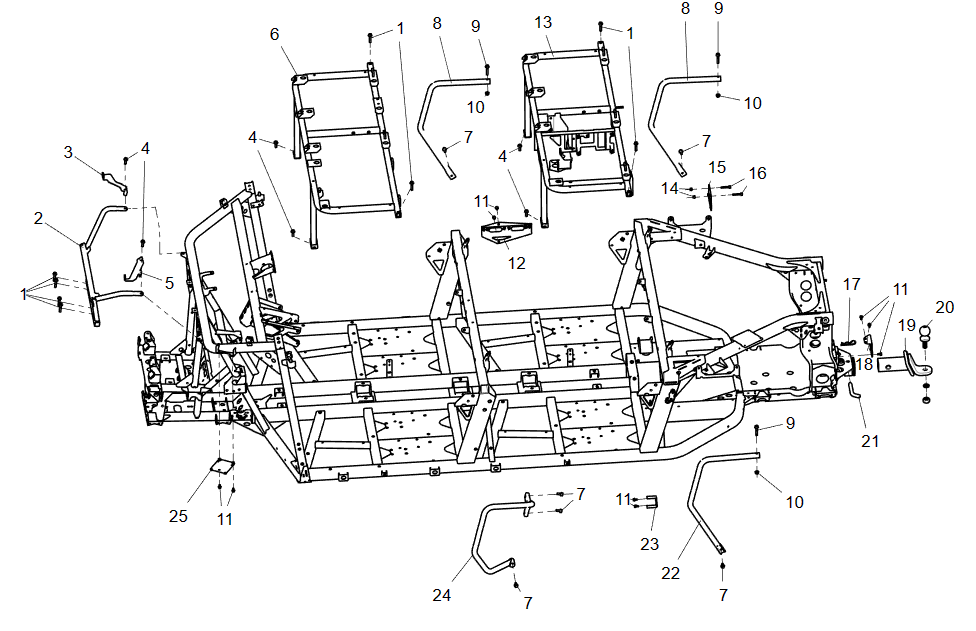

Metal structural parts

Metal structural parts

#

Item Name

Price

Qty

1

HEXAGON FLANGE BOLT M8×40

GBT005789019

$1.82

2

Front bracket assy(Black)

U03-C070000-DB0-00

$92.82

3

HEADLIGHT BRACKET RIGHT

U09C24100002

$26.40

4

HEXAGON FLANGE BOLT M8×25

GBT005789016

$0.91

5

HEADLIGHT BRACKET LEFT

U09C23100002

$26.40

6

Front seat lower bracket assy

U03-C030000-DB0-00

$263.90

7

HEXAGON FLANGE BOLT M8×20

GBT005789015

$0.91

8

Right handle guard tube(Black)

U01C00005002

$54.60

9

HEXAGON FLANGE BOLT M8×45

GBT005789020

$0.91

10

NUT M8

GBT061831003

$0.91

11

HEXAGON FLANGE BOLT M6×12

GBT005789006

$0.91

12

RECTIFIER MOUNTING BRACKET ASSEMBLY

U01-C000030-DB0-00

$13.65

13

Rear seat lower bracket assy

U03-C032000-DB0-00

$345.80

14

NUT M6

GBT061831002

$0.91

16

HEXAGON FLANGE BOLT M6×40

GBT005789012

$0.91

17

LOCK PIN 12

QCT000623002

$0.91

18

U01 Trailer power mounting bracket ASSY

U01C00070002

$18.85

19

WELD DRAG (BLACK)

S01C20300002

$96.46

20

Tow ball head assy_SGW51

U01R21100001

$54.60

21

U01 TOWING HOOK BOLT 16

U01R21300002

$30.11

22

Rear left handle guard tube

U03-C040000-DB0-00

$43.68

23

STARTING RELAY BRACKET

U01-C000040-DB0-00

$7.28

24

Driver's hand guard assy

U03-C060000-DB0-00

$53.69

25

T-BOX MOUNTING PLATE

U01C01280002

$34.58
