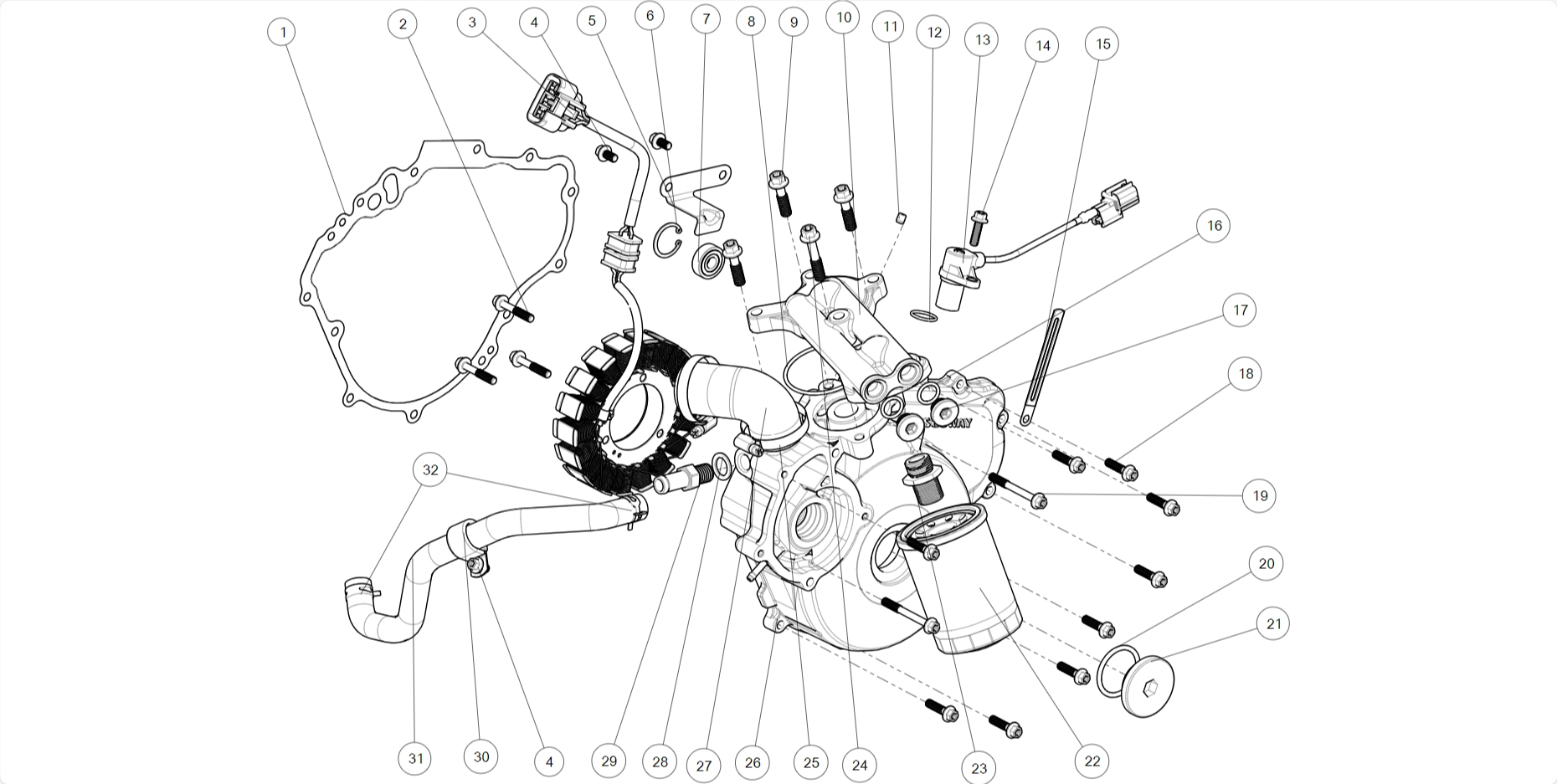

Left crankcase cover sub-assembly

Left crankcase cover sub-assembly

#

Item Name

Price

Qty

1

LEFT CRANKCASE COVER GASKET

E02C20001001

$8.19

2

BOLT M6×35

F01000007001

$0.98

3

MAGNETO STATOR ASSEMBLY(980W)

E02-C311000-000-00

$470.47

4

BOLT M6×12

F01000001001

$0.91

5

MAGNETO CRIMPING PLATE

E02C20105001

$1.82

6

CIRCLIPS 26

GBT000893005

$0.91

7

BEARINGS 629-2RS

GBT000276027

$5.46

8

O-RING 58×2.65

E02-C201030-000-01

$1.82

9

BOLT M8×30

F01000015001

$1.82

10

OIL FILTER MOUNTING SEAT

E02-C201020-000-01

$66.43

11

OIL PASSAGE PLUG

E02C20003001

$6.37

12

O-RING 17×2

F01K00301001

$0.91

13

CRANK POSITION SENSOR (CPS)

E01K00300001

$55.90

14

BOLT M6×20

F01000004001

$0.91

15

HOSE CLAMP

F01H00011001

$1.82

16

O-RING 13.8×2.5

F01G00005001

$0.91

17

PLUG M14

F02C10008001

$2.73

18

BOLT M6×25

F01000005001

$0.91

19

BOLT M6×55

F01000009001

$1.82

20

O-RING 35×3.5

E01C20107001

$1.82

21

STATOR COVER PLUG

E01C20104001

$19.41

22

OIL FILTER

E02-G005000-000-00

$10.92

23

OIL FILTER ADAPTER

F01G00001001

$5.46

24

BOLT M8×40

F01000017001

$1.82

25

A TYPE WORM DRIVE HOSE HOOP 50

QCT000620004

$1.82

26

LEFT CRANKCASE COVER ASSEMBLY

E02C20100001

$170.17

27

WATER PUMP OUTLET PIPE

F02C20005001

$9.10

28

GASKET 14×21×1.5

F01F10003001

$0.91

29

WATER PIPE ADAPTER

F01H00008001

$6.71

30

HOSE CLAMP (2)

F01H00002001

$0.91

31

OIL COOLER INLET PIPE

F02C20004001

$9.10

32

STEEL BELT ELASTIC HOSE CLAMP 22

QCT006211009

$2.91

View full details
