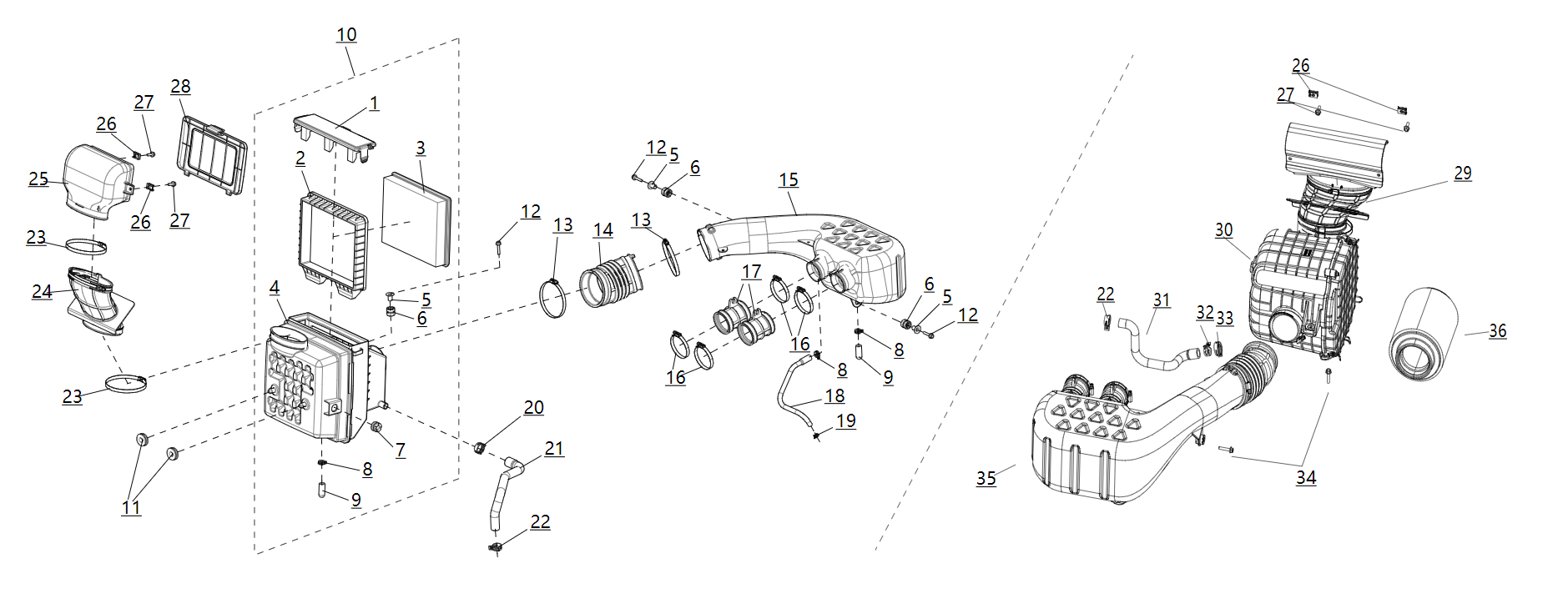

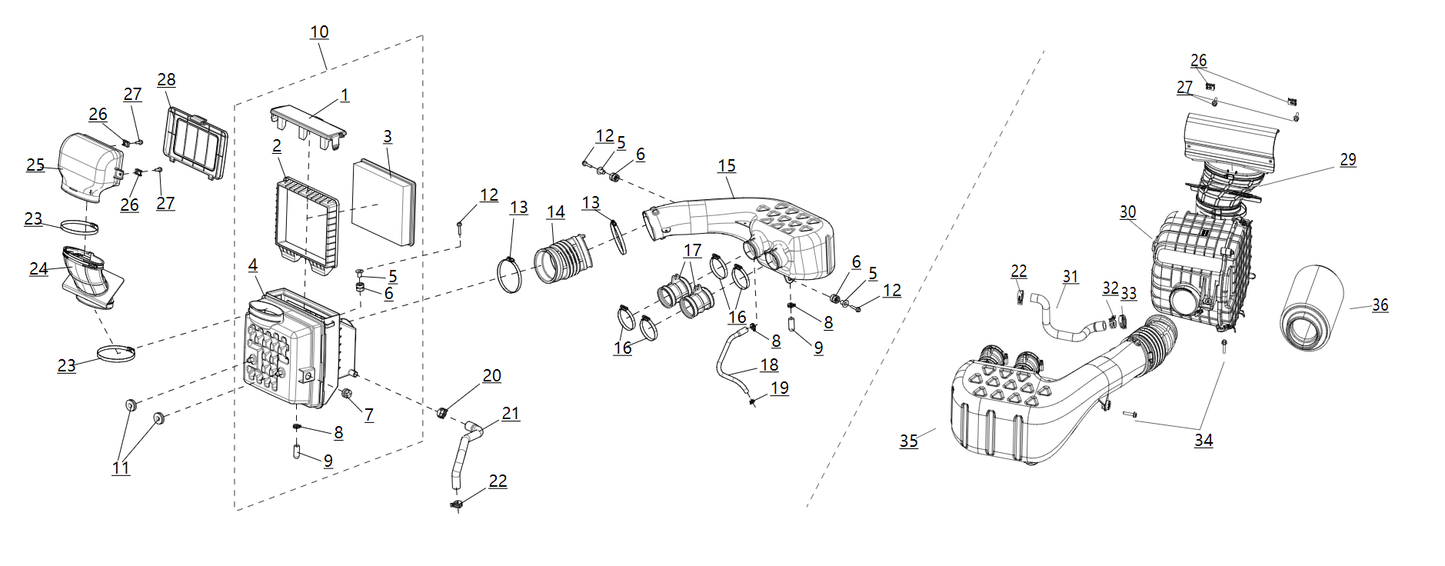

Intake system assembly

Intake system assembly

#

Item Name

Price

Qty

1

AIR FILTER ENDCOVER

U09A21009001

$14.00

2

AIR FILTER COVER

U09A21008001

$18.00

3

AIR FILTER

S03-A207B00-000-02

$26.00

4

AIR FILTER HOUSING

U09A21020001

$70.00

5

FLANGING BUSH

S01A20705001

$1.00

6

BUFFER RUBBER SLEEVE

A01A21006001

$6.00

7

RUBBER RING

S03A20706001

$1.00

8

CLAMP 16

QCT006211005

$3.00

9

LEAKING SEAL

U09-A211110-000-01

$2.00

10

AIR FILTER ASSEMBLY

U09A21100001

$162.00

11

I-SHAPED RUBBER RING

T01000002001

$3.00

12

HEXAGON FLANGE BOLT M6×30

GBT005789065

$1.00

13

WORM HOSE CLAMP (100)

QCT000620009

$3.00

14

EXPANSION CHANBER CONNECTING HOSE

U09A21005001

$24.00

15

EXPANSION CHANBER

U09A21010001

$59.00

16

WORM HOSE CLAMP(70)

QCT000620006

$3.00

17

THROTLE BODY CONNECTING HOSE

U09A21011001

$8.00

18

TRANSMISSION EXHAUST PIPE

U09A22001001

$4.00

19

CLAMP 11

QCT006211003

$1.00

20

CLAMP 26

QCT006211011

$4.00

21

INTAKE BREATHER

U09-A200200-000-00

$8.00

21.1

INTAKE BREATHER (2)

U09-A200200-000-02

$11.00

22

CLAMP 22

QCT006211009

$4.00

22.1

CLAMP 20

QCT006211015

$3.00

23

A TYPE WORM DRIVE HOSE HOOP 110

QCT000620016

$3.00

24

AIR FILTER INLET PIPE

U09A21002001

$21.00

25

AIR FILTER INLET HOSE

U09-A210001-000-02

$19.00

26

M6 NUT CLAMP

T04000002001

$1.00

27

BOLT M6×16

GBT005789007

$1.00

28

AIR FILTER INLET CAP

U09A21006001

$16.00

29

AIR INTAKE PIPE

U09-A223000-000-00

$53.00

30

AIR FILTER BOX

U09-A211000-000-01

$112.00

31

ENGINE BREATHER PIPE

U09-A200200-000-03

$8.00

32

CLAMP 22 (2)

QCT006211009

$4.00

33

STEEL BELT ELASTIC HOSE CLAMP 28

QCT006211007

$4.00

35

EXPANSION CHAMBER

U09-A222000-000-00

$143.00

36

AIR FILTER (2)

U09-A207000-000-02

$28.00
