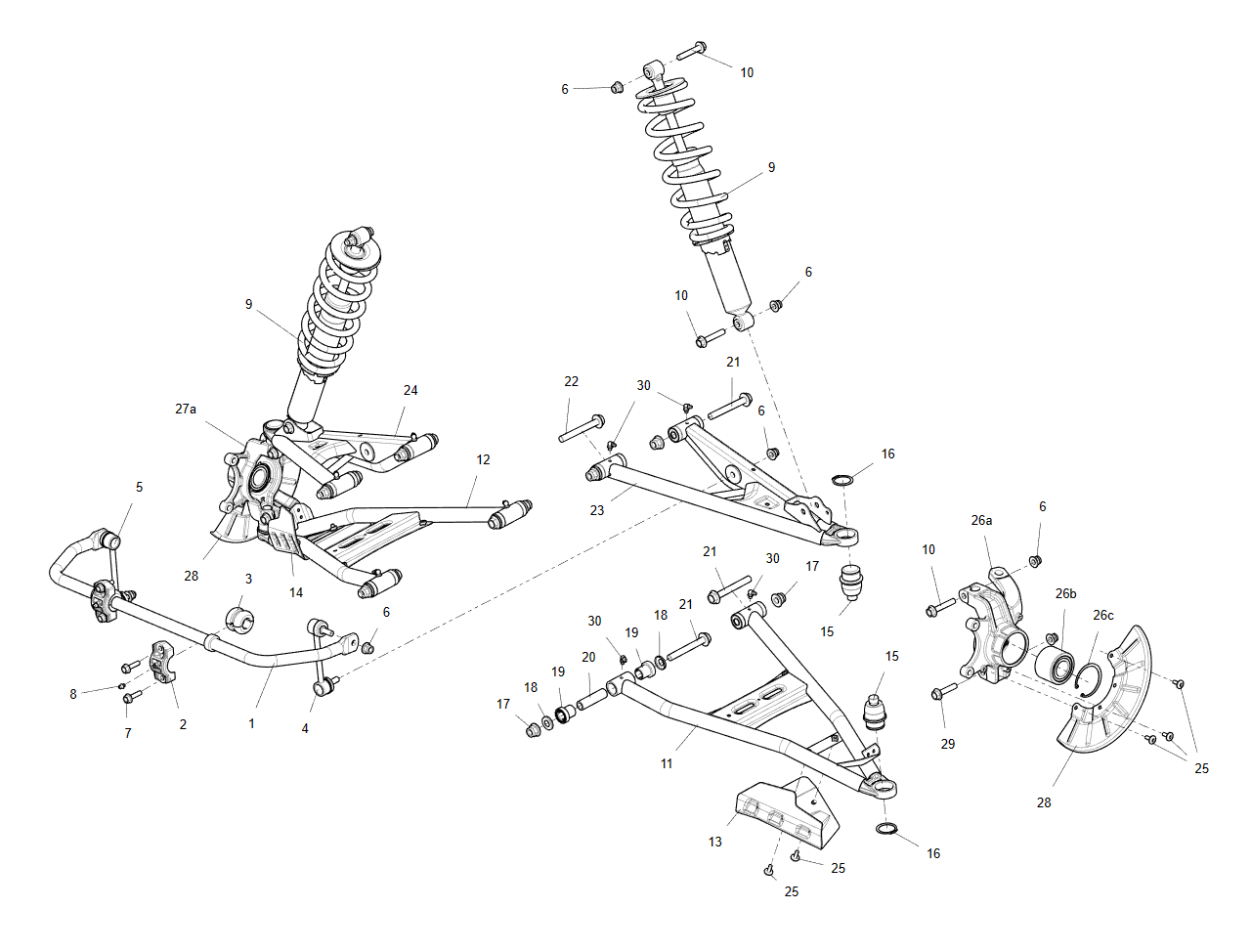

Front Suspension Assembly

Front Suspension Assembly

#

Item Name

Price

Qty

1

front balance bar assembly

U09-D161001-FB0-00

$101.92

2

U01 REAR BALANCE BAR MOUNTING SEAT (AL)

U01D26002001

$23.66

3

U01 FRONT BALANCE BAR BUFFER CHUNKS

U01D26001001

$3.64

4

FL BALANCE BAR BALL PIN

U09D16200001

$55.51

5

FR BALANCE BAR BALL PIN

U09D16300001

$55.51

6

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

7

HEXAGON FLANGE BOLT M8×30

GBT005789017

$0.91

8

GLIB M6

GBT001152001

$0.91

9

Front shock absorber assy

U03-D150000-0B0-00

$189.28

9.1

Front shock absorber assy (2)

U03-D150010-0B0-00

$235.69

10

HEXAGON FLANGE BOLT M10×1.25×55

GBT005789032

$1.82

11

Front left lower rocker arm (Red)

U03-D131003-FR0-00

$151.97

11

Front left lower rocker arm (Green)

U03-D131004-FG0-00

$151.97

11

Front left lower rocker arm (Black)

U03-D131005-FB0-00

$151.97

12

Front right lower rocker arm (Red)

U03-D141003-FR0-00

$151.97

12

Front right lower rocker arm (Green)

U03-D141004-FG0-00

$151.97

12

Front right lower rocker arm (Black)

U03-D141005-FB0-00

$151.97

13

FL LOWER A-ARM GUARD

U01H12900001

$3.64

14

FR LOWER A-ARM GUARD

U01H13100001

$3.64

15

MAIN PIN

U01-D112010-000-00

$34.58

16

CIRCLIP 34

GBT000894004

$0.91

17

NUT M12×1.25

GBT061832010

$0.91

18

A- ARM DUST COVER

U09D20008001

$0.91

19

A- ARM BUSHING

U09D20006001

$3.55

20

A- ARM SLEEVE

U09D10001001

$4.55

21

BOLT M12×1.25×90

GBT005789103

$3.64

22

BOLT M12×1.25×95

GBT005789104

$3.64

23

Front left upper rocker(Red)

U03-D111003-FR0-00

$166.53

23

Front left upper rocker(Green)

U03-D111004-FG0-00

$166.53

23

Front left upper rocker(Black)

U03-D111005-FB0-00

$166.53

24

Front right upper rocker(Red)

U03-D121003-FR0-00

$166.53

24

Front right upper rocker(Green)

U03-D121004-FG0-00

$166.53

24

Front right upper rocker(Black)

U03-D121005-FB0-00

$166.53

25

HEXAGON SOCKET LARGE PAN HEAD BOLT M6×16

T03000007002

$0.91

26

Front left steering knuckle

U01D10010001

$340.34

26a

U01 FRONT LEFT STEERING KNUCKLE_BLACK

U01D10011001

$232.05

26b

HUB BEARING(DAC3006342-2ZC1)

JBT010238002

$56.42

26c

CIRCLIP 63

GBT000893002

$0.91

27

Front right steering knuckle

U01D10020001

$340.34

27a

FR KNUCKLE

U01D10021001

$232.05

28

BRAKE ROTOR DUST SHIELD

U01D10001002

$37.32

29

BOLT M10×1.25×45

GBT005789030

$1.82

30

90°Grease Fitting

T07000001007

$0.91
