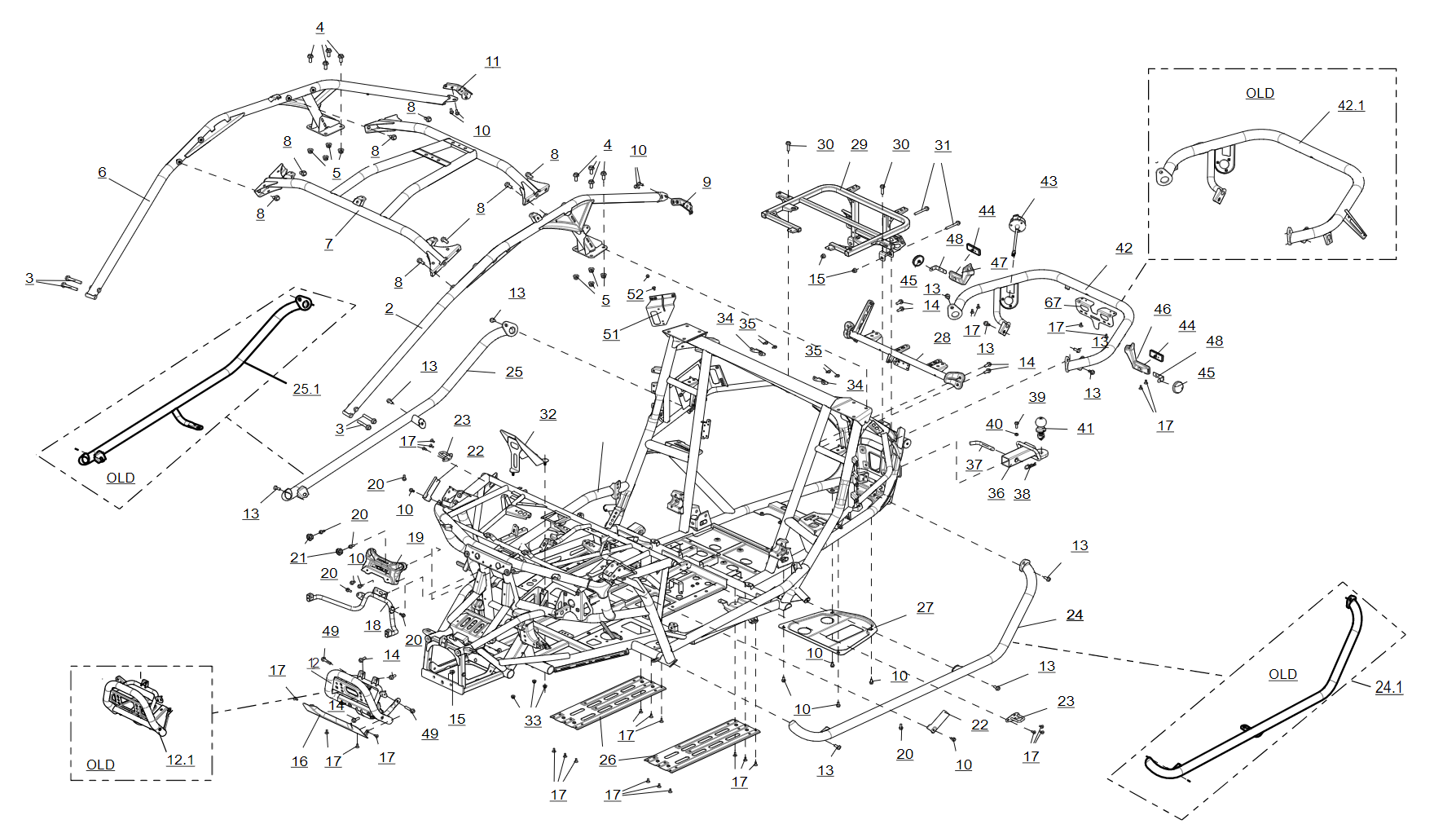

Frame assembly (US NARROW VEHICLE VERSION)

Frame assembly (US NARROW VEHICLE VERSION)

#

Item Name

Price

Qty

1

FRAME (RED)

S05B01000002

$6,448.26

1

FRAME (GREEN)

S05B01000003

$6,448.26

1

FRAME (BLACK)

S05B01000005

N/A

-

2

TOP BEAM LEFT(RED)

S03-C111000-FR0-01

$597.87

2

TOP BEAM LEFT(GREEN)

S03-C111000-FG0-01

$597.87

2

TOP BEAM LEFT(BLACK)

S03-C111000-FB0-01

$597.87

3

HEX FLANGE BOLT M12×1.25×75

GBT005789102

$3.64

4

BOLT M12×1.25×30

GBT005789054

$2.73

5

NUT M12×1.25

GBT061832002

$0.91

6

TOP BEAM RIGHT(RED)

S03-C113000-FR0-01

$597.87

6

TOP BEAM RIGHT(GREEN)

S03-C113000-FG0-01

$597.87

6

TOP BEAM RIGHT(BLACK)

S03-C113000-FB0-01

$597.87

7

TOP BEAM UPPER (RED)

S03-C112000-FR0-01

$677.04

7

TOP BEAM UPPER (GREEN)

S03-C112000-FG0-01

$677.04

7

TOP BEAM UPPER (BLACK)

S03-C112000-FB0-01

$677.04

8

HEXAGON FLANGE BOLT M12×1.25×25

GBT005789045

$1.82

9

UPPER LEFT MOUNTING BRACKET ASSY

S01C03700002

$22.82

10

HEXAGON FLANGE BOLT M8×16

GBT005789014

$0.91

11

UPPER RIGHT MOUNTING BRACKET ASSY

S01C03800002

$22.82

12

FRONT BUMPER (BLACK)

S05-C009000-FB0-00

$239.33

12

FRONT BUMPER (GREEN)

S05-C009000-FG0-00

$239.33

12

FRONT BUMPER (RED)

S05-C009000-FR0-00

$239.33

12.1

FRONT BUMPER (RED) (2)

S01C00600002

$252.07

12.1

FRONT BUMPER (GREEN) (2)

S01C00600003

$252.07

12.1

FRONT BUMPER (BLACK) (2)

S01C00600005

$235.69

13

HEXAGON FLANGE BOLT M10×1.25×20

GBT005789025

$0.91

14

HEXAGON FLANGE BOLT M10×1.25×25

GBT005789026

$0.91

15

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

16

BUMPER TRIM PANEL (FROSTED SILVER)

S01C00700002

$97.37

16

BUMPER TRIM PANEL (SILVER GRAY)

S01C00700003

$97.37

16

BUMPER TRIM PANEL (FROSTED SILVER) (2)

S05-C030000-PH1-00

$51.87

16

BUMPER TRIM PANEL (SILVER GRAY) (2)

S05-C030000-PW2-00

$51.87

17

HEXAGON SOCKET MUSHROOM HEAD SCREW

T03000007002

$0.91

18

FRAME FRONT SUPPORT ASSEMBLY (BLACK)

S05-C021000-DB0-00

$42.77

19

FRONT SUPPORT UPPER PLATE (RED)

S01C005A1002

$48.23

19

FRONT SUPPORT UPPER PLATE (GREEN)

S01C005A1003

$48.23

20

HEXAGON FLANGE BOLT M8×20

GBT005789015

$0.91

21

DECORATIVE PLUG

S01H21000001

$3.64

22

A-PILLAR DECORATION (RED)

S05B30050002

$83.50

22

A-PILLAR DECORATION (GREEN)

S05B30050003

$83.50

22

A-PILLAR DECORATION (BLACK)

S05B30050005

$14.56

23

HEXAGON SOCKET HEAD CAP SCREW M8×12

GBT000701013

$0.91

23

DOOR LATCH

S01C02000001

$4.55

24

LEFT GUARD BAR(BLACK)

S01-C023000-FB0-01

$207.48

24

LEFT GUARD BAR(GREEN)

S01-C023000-FG0-01

$207.48

24

LEFT GUARD BAR(RED)

S01-C023000-FR0-01

$207.48

24.1

LEFT GUARD BAR(RED) (2)

S01C02300002

$234.78

24.1

LEFT GUARD BAR(GREEN) (2)

S01C02300003

$234.78

24.1

LEFT GUARD BAR(BLACK) (2)

S01C02300005

$182.91

25

RIGHT GUARD BAR (BLACK)

S01-C024000-FB0-01

$207.48

25

RIGHT GUARD BAR (GREEN)

S01-C024000-FG0-01

$207.48

25

RIGHT GUARD BAR (RED)

S01-C024000-FR0-01

$207.48

25.1

RIGHT GUARD BAR (RED) (2)

S01C02400002

$234.78

25.1

RIGHT GUARD BAR (GREEN) (2)

S01C02400003

$234.78

25.1

RIGHT GUARD BAR (BLACK) (2)

S01C02400005

$182.91

26

MIDDLE BOTTOM GUARD

S01B37200002

$65.52

27

ENGINE LOWER GUARD

S05-C051000-DB0-00

$57.33

28

SAFETY BELT FIXING BRACKET COMBINATION

S05B00300002

$115.57

29

REAR CARGO BOX BRACKET ASSEMBLY

S05-C028000-DB0-00

$139.23

30

HEXAGON FLANGE BOLT M10×1.25×40

GBT005789029

$1.82

31

HEXAGON FLANGE BOLT M10×1.25×75

GBT005789086

$2.73

32

FRONT PASSENGER SEAT PEDAL ASSEMBLY

S01C05400002

$35.49

33

NUT M8

GBT061831003

$0.91

34

REAR CARGO BOX UPPER BRACKET

S05C02812002

$21.33

35

BOLT M6×16

GBT005789007

$0.91

36

TRAILER WELDING COMBINATION

S01C20300002

$96.46

37

TOWING HOOK BOLT 16

U01R21300002

$30.11

38

LOCKING PIN 12

QCT000623002

$0.91

39

BOLT M8×25

GBT005789016

$0.91

40

TYPE 1 HEXAGON NUT M8

GBT006170004

$0.91

41

HITCH BALL SGW51

U01R21100001

$54.60

42

REAR BUMPER(BLACK)

S05-C025500-FB0-01

$217.49

42

REAR BUMPER(GREEN)

S05-C025500-FG0-01

$217.49

42

REAR BUMPER(RED)

S05-C025500-FR0-01

$217.49

43

POWER OUTPUT SEAT OF TRAILER

U01M04500004

$54.60

44

SQUARE REFLECTOR

T10000001003

$1.82

45

CIRCULAR REFLECTOR (RED)

T10000001002

$1.82

46

REAR LEFT REFLECTOR SEAT

S05-H162020-0B0-00

$3.64

47

REAR RIGHT REFLECTOR SEAT

S05-H162021-0B0-00

$3.64

48

REFLECTOR BRACKET

S05-C012000-DB0-00

$9.10

49

BOLT M10×1.25×45

GBT005789030

$1.82

50

HEXAGON FLANGE BOLT M12×1.25×30

GBT005789027

$1.82

51

RECTIFIER BRACKET

S05-C011000-DB0-00

$13.65

52

HEXAGON FLANGE BOLT M6×30

GBT005789065

$0.91
