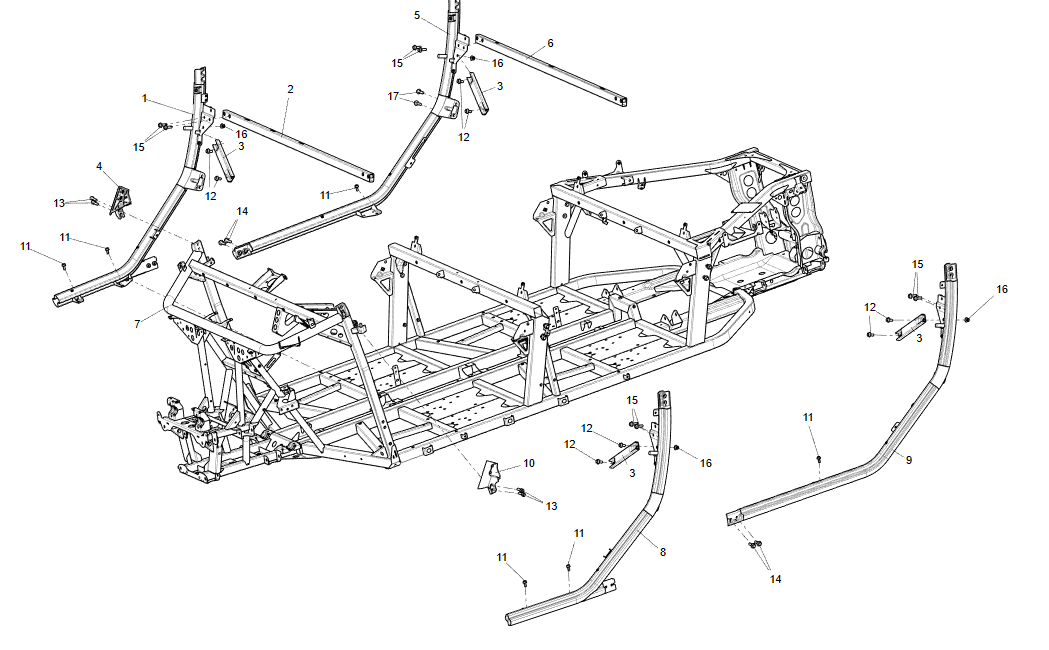

Frame assembly FRAME BODY

Frame assembly FRAME BODY

#

Item Name

Price

Qty

1

TOP BEAM LOWER FRONT RIGHT WELD ASSY-BLACK

U03-C112000-FB0-00

$370.37

1

TOP BEAM LOWER FRONT RIGHT WELD ASSY-GREEN

U03-C112000-FG0-00

$370.37

1

TOP BEAM LOWER FRONT RIGHT WELD ASSY-RED

U03-C112000-FR0-00

$370.37

2

B-PILLAR CONNECTION ASSY(BLACK)

U03-C117000-DB0-00

$85.54

3

U01 TOP BAR REAR LOWER SUPPORT PIPE

U01C10001002

$35.49

4

U05 A-PILLAR LOWER RIGNT SOLEPLATE_RED

U05C00001003

$150.15

4

U05 A-PILLAR LOWER RIGNT SOLEPLATE_GREEN

U05C00001004

$150.15

4

U05 A-PILLAR LOWER RIGNT SOLEPLATE_BLACK

U05C00001005

$150.15

5

TOP BEAM LOWER REAR RIGHT ASSY-BLACK

U03-C114000-FB0-01

$426.79

5

TOP BEAM LOWER REAR RIGHT ASSY-GREEN

U03-C114000-FG0-01

$434.98

5

TOP BEAM LOWER REAR RIGHT ASSY-RED

U03-C114000-FR0-01

$434.98

6

C-PILLAR CONNECTION ASSY(BLACK)

U03-C118000-DB0-00

$109.20

7

FRAME WELDING ASSY(BLACK)

U03-B010000-DB0-00

N/A

-

8

TOP BEAM LOWER FRONT LEFT ASSY-BLACK

U03-C111000-FB0-00

$370.37

8

TOP BEAM LOWER FRONT LEFT ASSY-GREEN

U03-C111000-FG0-00

$370.37

8

TOP BEAM LOWER FRONT LEFT ASSY-RED

U03-C111000-FR0-00

$370.37

9

TOP BEAM LOWER REAR LEFT ASSY-BLACK

U03-C113000-FB0-01

$426.79

9

TOP BEAM LOWER REAR LEFT ASSY-GREEN

U03-C113000-FG0-01

$434.98

9

TOP BEAM LOWER REAR LEFT ASSY-RED

U03-C113000-FR0-01

$434.98

10

U05 A-PILLAR LOWER LEFT SOLEPLATE_RED

U05C00002003

$141.05

10

U05 A-PILLAR LOWER LEFT SOLEPLATE_GREEN

U05C00002004

$141.05

10

U05 A-PILLAR LOWER LEFT SOLEPLATE_BLACK

U05C00002005

$141.05

11

HEXAGON FLANGE BOLT M8×20

GBT005789015

$0.91

12

HEXAGON FLANGE BOLT M10×1.25×20

GBT005789025

$0.91

13

SCREWS M10×1.25×35

GBT000701005

$1.82

14

BOLT M10×1.25×35

GBT005789028

$0.91

15

HEXAGON FLANGE BOLT M12×1.25×30

GBT005789027

$1.82

16

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

17

HEXAGON FLANGE BOLT M10×1.25×40

GBT005789029

$1.82
