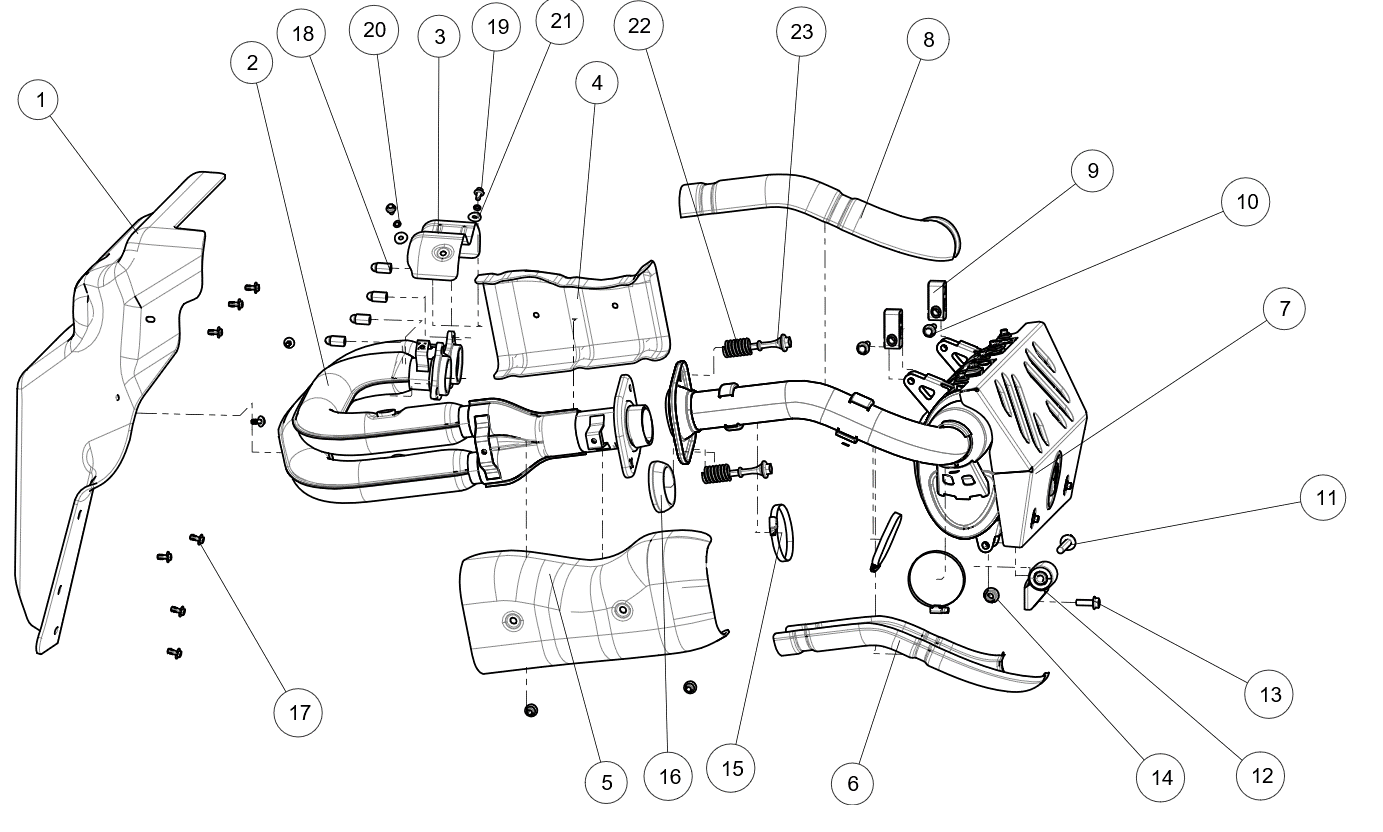

Exhaust Pipe Assembly

Exhaust Pipe Assembly

#

Item Name

Price

Qty

1

COCKPIT HEAT SHIELD

U09-A300002-000-03

$185.00

2

Exhaust elbow welding combination

U09-A310002-PB0-00

$604.00

3

Exhaust pipe cylinder head heat shield

U09-A350001-PB0-00

$24.20

4

TEE INNER HEAT SHIELD

U09-A330002-000-00

$58.30

5

TEE OUTER HEAT SHIELD

U09-A330001-000-00

$66.00

6

Heat shield under the barrel elbow

U09-A340001-PB0-00

$57.20

7

Exhaust pipe body assembly

U09-A320003-PB0-02

$1,171.00

8

Heat shield on cylinder elbow

U09-A330001-PB0-00

$59.40

9

CYLINDER HANGING LINER

U01-A3A3010-000-01

$20.90

10

HEXAGON FLANGE BOLT M8×40

GBT005789019

$2.20

11

BOLT M10×1.25×70

GBT005789062

$2.20

12

EXHAUST HANGER BRACKET

U05A31010002

$25.30

13

HEXAGON FLANGE BOLT M8×25

GBT005789016

$1.10

14

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$1.10

15

A-BAND, TRANSMISSION HOSE 80

QCT000620007

$3.30

16

U05 GRAPHITE SEAL SLEEVE

U05A31001001

$17.60

17

SCREW M6×16

T03000006002

$3.30

18

CAP NUT

A03A30007001

$2.20

19

BOLT M6×12

T03000014001

$1.10

22

BOLT,EXHAUST PIPE CONNECT

A01A32004001

$7.70

23

SPRING,EXHAUST PIPE INSTALL

A01A32005001

$9.90
