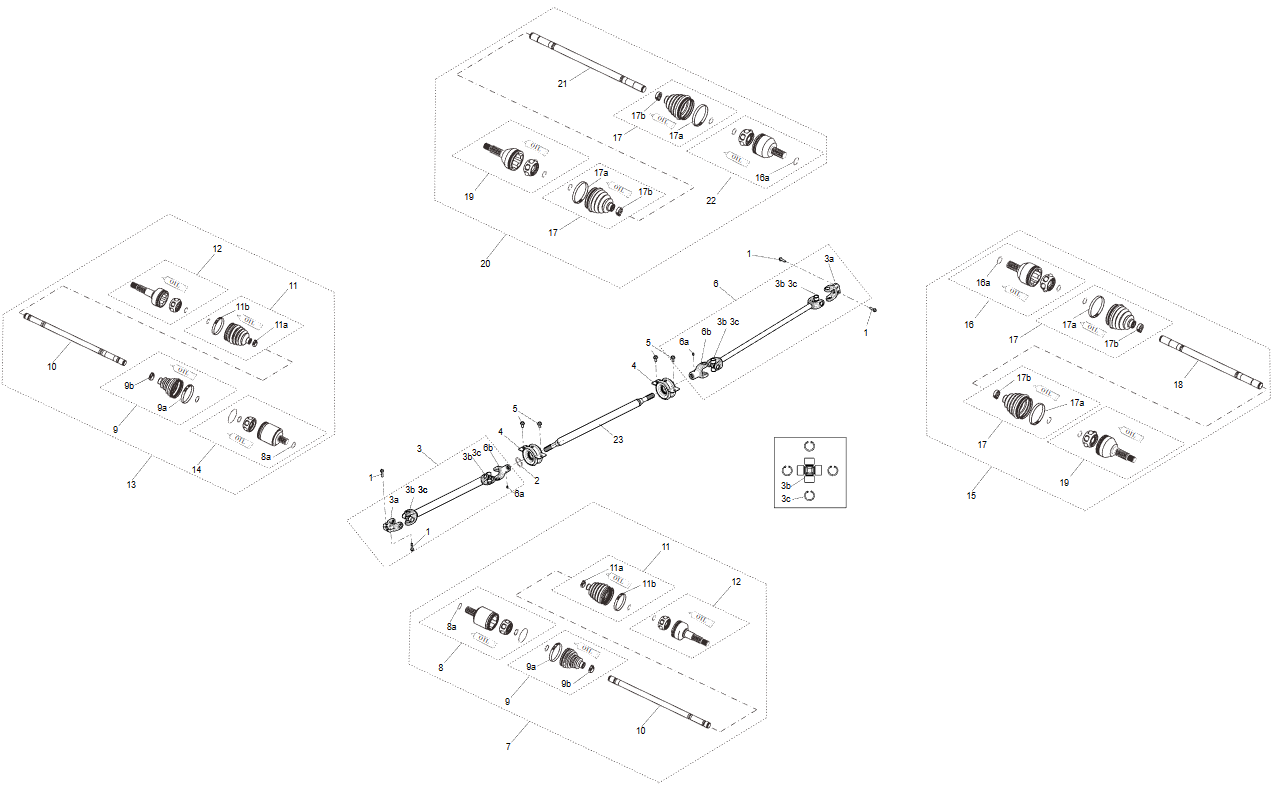

Drive Shaft Assembly

Drive Shaft Assembly

#

Item Name

Price

Qty

1

BOLT M8×35

A03F11001101

$0.91

2

CIRCLIP 30

GBT000894012

$0.91

3

FRONT DRIVE SHAFT FRONT SECTION ASSEMBLY

S03P21100002

$304.85

3a

FRONT DRIVESHAFT U-JOINT

U01P21101001

$65.52

3b

FRONT DRIVESHAFT UNIVERSAL JOINT

U01P22010001

$50.05

3c

CIRCLIP 25

GBT000893007

$2.73

4

CARRIER BEARING

U01P21400001

$73.71

5

BOLT M10×1.25×25

GBT005789026

$0.91

6

REAR DRIVESHAFT ASSY

U09P21300001

$318.50

6a

FUEL CUP M6

GBT001152001

$0.91

6b

REAR DRIVESHAFT UNIVERSAL JOINT

U09P21301001

$75.53

7

U01 CONSTANT VELOCITY DRIVE SHAFT FL

U01P11000001

$329.42

8

U01 FL INNER BALL CAGE ASSY

U01P11030001

$121.03

8a

CIRCLIP

U01P11011001

$2.73

9

U01 MAINTENANCE KIT FOR INNER BALL CAGE

U01P11040001

$42.77

9a

BIG CLAMPING BAND

U01P11008001

$3.64

9b

SMALL CLAMPING BAND

U01P11006001

$2.73

10

U01 SHAFT

U01P11005001

$68.25

11

U01 MAINTENANCE KIT FOR OUTSIDE BALL CAG

U01P11050001

$29.12

11a

SMALL CLAMPING BAND (2)

U01P11004001

$2.73

11b

BIG CLAMPING BAND (2)

U01P11002001

$4.55

12

U01 OUTSIDE BALL CAGE ASSY

U01P11020001

$119.21

13

U01 CONSTANT VELOCITY DRIVE SHAFT FR

U01P12000001

$328.51

14

U01 FR INNER BALL CAGE ASSY

U01P12030001

$119.21

15

U09_CONSTANT VELOCITY DRIVE SHAFT RL

U09P14000001

$371.28

16

U05 RL INNER BALL CAGE ASSY

U09P14020001

$40.95

16a

CIRCLIP (2)

U09P13006001

$2.73

17

U09 MAINTENANCE KIT FOR REAR SHAFT ASSY

U09P13030001

$40.95

17a

BIG CLAMPING BAND (3)

U09P13002001

$3.64

17b

SMALL CLAMPING BAND (3)

U09P13004001

$2.73

18

MID SHAFT

U09P14005001

$74.62

19

U09 OUTSIDE BALL CAGE ASSY

U09P13010001

$127.40

20

U09_CONSTANT VELOCITY DRIVE SHAFT RR

U09P13000001

$373.10

21

U09 SHAFT

U09P13005001

$74.62

22

RR INNER BALL CAGE ASSY

U09P13020001

$129.22

23

front drive shaft(Mid)

U03-P212000-000-00

$117.39
