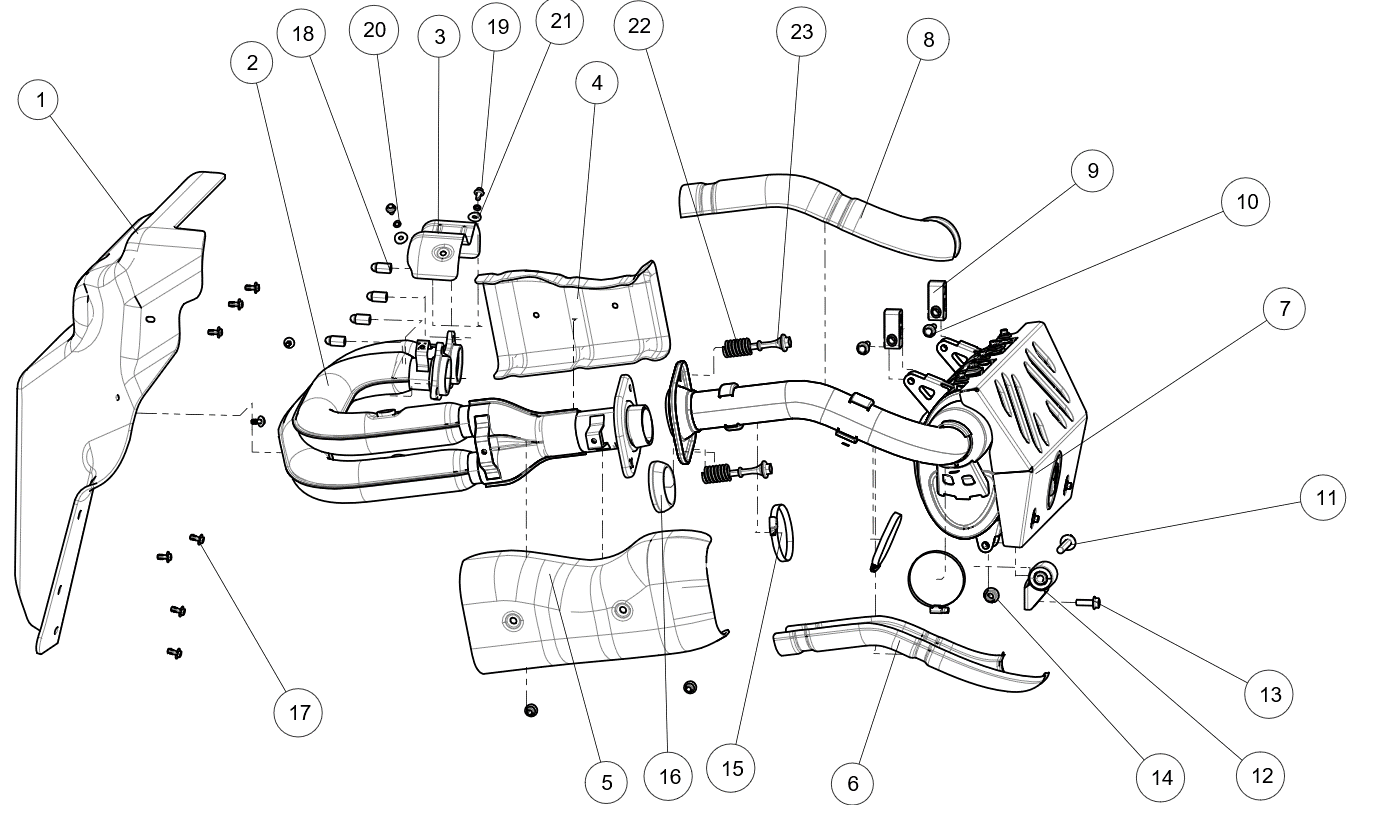

Double layer Exhaust system assembly

Double layer Exhaust system assembly

#

Item Name

Price

Qty

1

COCKPIT HEAT SHIELD

U09-A300002-000-03

$160.16

2

Exhaust elbow welding combination

U09-A310003-PB0-00

$588.77

3

Exhaust pipe cylinder head heat shield

U09-A350001-PB0-00

$18.20

4

Tee inner heat shield

U09-A330003-000-00

$76.44

5

Tee outer heat shield

U09-A330003-000-00

$76.44

6

Heat shield under the barrel elbow

U09-A340001-PB0-00

$43.68

7

Exhaust pipe body assembly

U05A31200001

N/A

-

8

Heat shield on cylinder elbow

U09-A330001-PB0-00

$44.59

9

CYLINDER HANGING LINER

U01-A3A3010-000-01

$15.47

10

HEXAGON FLANGE BOLT M8×40

GBT005789019

$1.82

11

BOLT M10×1.25×70

GBT005789062

$1.82

12

Cylinder hanging bracket assembly

U05A31010002

$30.81

13

HEXAGON FLANGE BOLT M8×25

GBT005789016

$0.91

14

2-NON-METALLIC HF NUT M10×1.25

GBT061832001

$0.91

15

A-BAND, TRANSMISSION HOSE 80

QCT000620007

$2.73

16

U05 GRAPHITE SEAL SLEEVE

U05A31001001

$12.74

17

SCREW M6×16

T03000006002

$1.82

18

CAP NUT

A03A30007001

$1.82

19

BOLT M6×16

GBT166741060

$0.91

20

SPRING WASHER 6_STAINLESS STEEL

GB0000093001

$0.91

21

PLAIN WASHER 6_LARGE_GRADE A

GBT000961002

$1.87

22

BOLT,EXHAUST PIPE CONNECT

A01A32004001

$5.67

23

SPRING,EXHAUST PIPE INSTALL

A01A32005001

$7.80
