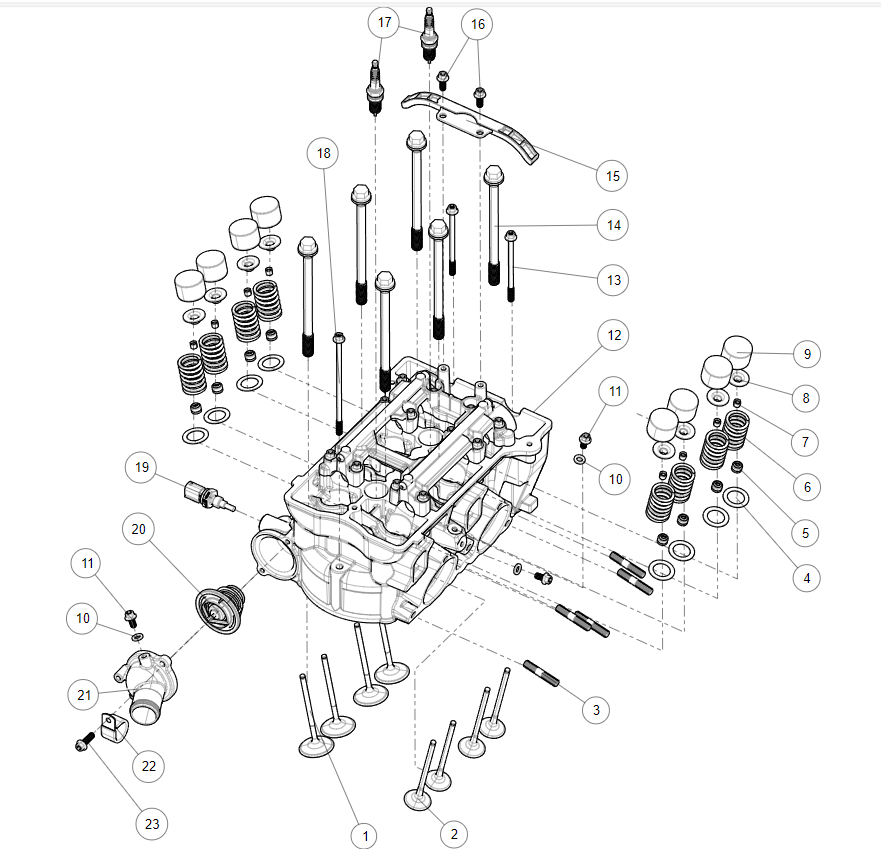

Cylinder head

Cylinder head

#

Item Name

Price

Qty

1

EXHAUST VALVE

F02A22001001

$30.94

2

INTAKE VALVE

F01A20002001

$21.59

3

STUD M8×43

F01A20008001

$0.91

4

VALVE SPRING SEAT

F01A20004001

$2.46

5

VALVE STEM SEAL

F01A20200001

$1.82

6

VALVE SPRING

F01A20001001

$15.60

7

VALVE KEEPER

F01A20005001

$1.22

8

VALVE RETAINER

F01A20006001

$6.19

9

VALVE TAPPET

F01A20007000

$6.37

10

GASKET 6

GBT000971009

$0.91

11

BOLT M6×12

F01000001001

$0.91

12

CYLINDER HEAD ASSY

E03-A210001-000-01

$797.16

13

BOLT M6×90

F01000012001

$1.94

14

CYLINDER HEAD BOLT

F01A20600001

$5.54

15

FIXED CAM CHAIN GUIDE

E02-A407000-000-02

$10.01

16

BOLT M6×16

F01000002001

$0.91

17

SPARK PLUG(TORCH)

F01A20400002

$11.83

18

BOLT M6×135

F02A21103001

$2.73

19

WATER TEMPERATURE SENSOR

F01H00200001

$58.54

20

THERMOSTAT ASSEMBLY(74-87)

E02-A230000-000-02

$21.84

21

THERMOSTAT COVER

E03-A220000-000-00

$20.02

22

HOSE CLAMP

F01H00002001

$0.91

23

BOLT M6×20

F01000004001

$0.91
