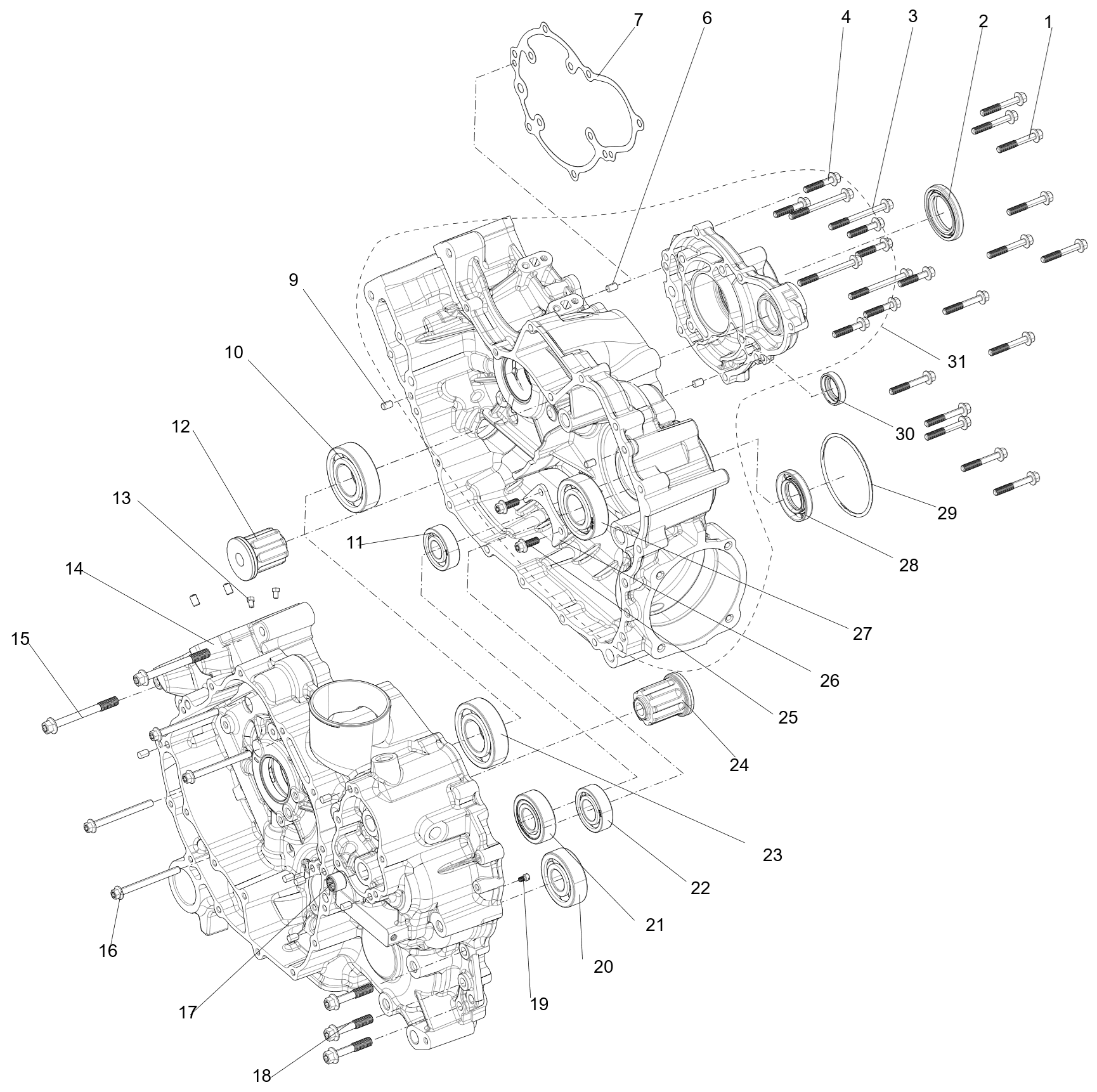

CRANKCASE ASSY

CRANKCASE ASSY

#

Item Name

Price

Qty

1

HEXAGON FLANGE BOLT M6×40

F01000008001

$0.98

2

OIL SEAL 35×52×7

F01C20203001

$6.37

3

BOLT M6×60

F01000010001

$1.82

4

BOLT M6×30

F01000006001

$0.91

6

DOWEL PIN 6X 10

GBT001192001

$0.91

7

RIGHT CRANKCASE COVER GASKET

E01-C202001-000-01

$2.73

9

DOWEL PIN 6X 10 (2)

GBT001192001

$0.91

10

BEARING 6206

GBT000276009

$32.94

11

BEARING 6203

GBT000276006

$8.19

12

ISOLATOR

A02A10100001

$12.74

13

PISTON INJECTION HOLE PLUG

F01C10005001

$0.91

14

LEFT CRANKCASE ASSY

E01-C101100-000-02

$466.83

15

BOLT M8×70

F01000018001

$2.73

16

BOLT M6×65

F01000011001

$1.82

17

NEEDLE ROLLER BEARING HK121612

GBT012764001

$2.73

18

BOLT M8×40

F01000017001

$1.82

19

FLOW ORIFICE ∅1

F01C10004001

$0.91

20

BEARING 6304

GBT000276011

$12.74

21

BEARING 6204Z

GBT000276007

$10.92

22

BEARING 6004

GBT000276003

$9.10

23

BEARING 6206 (2)

GBT000276009

$32.94

24

ISOLATOR (2)

A02A10100001

$12.74

25

BOLT M6×16

F01000002001

$0.91

26

BEARING PLATE

F01C10002001

$1.82

27

BEARING 62/28 P5C3

BG002760-62280-001

$22.75

28

OIL SEAL 28x47x7

E01-C102010-000-01

$6.37

29

O RING 73×3.0

E01-C102020-000-01

$1.82

30

OIL SEAL 20×30×7

F01C20202001

$3.64

31

RIGHT CRANKCASE ASSY

E01-C103100-000-01

$436.80
