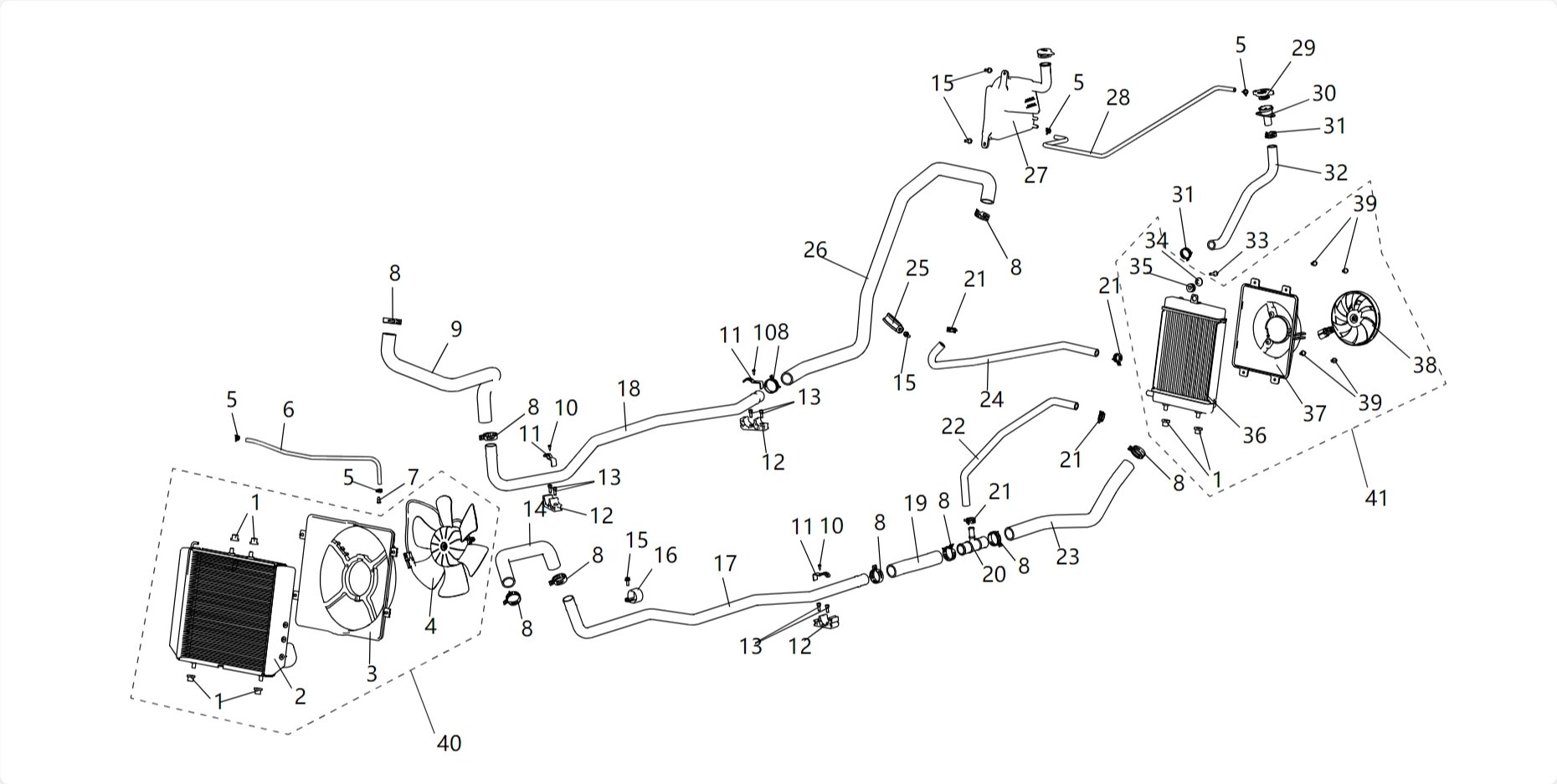

Item Name
Price
Qty
1
RADIATOR BUSHING
S01A40103001
$2.72
2
RADIATOR BODY
S05-A400101-000-00
$440.44
3
ENGINE RADIATOR COWL
S05-A400103-000-00
$29.12
4
FAN MOTOR ASSY
S05-A400102-000-00
$188.37
5
CLAMP 11
QCT006211003
$2.59
6
Engine Radiator Breather
S03A43900001
$3.64
7
CVT DRAIN PLUG
S05A20904001
$1.94
8
CLAMP 38
QCT006211016
9
RADIATOR WATER INLET HOSE
S03-A400101-000-01
10
SCREW ST4.2×13
GBT000845009
$0.91
11
PIPE CLAMP POSITIONING PLATE
S03C02200002
$19.80
12
PIPE BUCKLE
S03H20500001
13
HEXAGON SOCKET HEAD SCREW M6×16
GBT000701010
14
ENGINE RADIATOR WATER INLET HOSE
S03-A400131-000-00
$20.02
15
BOLT M6×16
GBT005789007
16
32 CLAMPS
T05000080002
17
ENGINE WATER INTAKE ALUMINUM PIPE
S03-A400401-000-00
$46.41
18
ENGINE OUTLET ALUMINUM TUBE
S03A42600001
$49.14
CLAMP 38 (2)
BQ006211-03815-Z01
$4.55
19
Engine Front Water Inlet Hose
S05A41000001
$9.10
20
CONNECTOR,TEE
S01A42500001
$10.92
21
CLAMP 22
QCT006211009
$2.91
22
OIL RADIATOR WATER INLET HOSE
S05-A400140-000-00
$15.47
23
ENGINE REAR WATER INLET HOSE
S05A41300001
$24.57
24
OIL RADIATOR WATER OUTLET HOSE
S05-A400360-000-00
25
38 Connecting rubber strip clamp
T05000007001
$6.37
26
ENGINE WATER OUTLET HOSE
S05-A400900-000-00
$53.69
27
AUXILIARY WATER TANK
S05A40200001
$25.48
28
OVERFLOW PIPE
S05-A400230-000-00
$2.73
29
TANK LID ASSY V
A01A41110002
30
WATER FILLER
S01A40300001
31
STEEL BELT ELASTIC HOSE CLAMP 28
QCT006211007
32
WATER INLET CONNECTING HOSE
S05-A400150-000-00
$11.83
33
HEXAGON FLANGE BOLT M6×25
GBT005789010
34
MOTOR RADIATOR MOUNTING T-SLEEVE
S01A40106001
35
MOTOR RADIATOR MOUNTING BUSH
S01A40105001
$4.00
36
oil radiator
S05-A400201-000-01
$207.48
37
oil radiator cover
S05-A400203-000-01
38
OIL RADIATOR FAN
S05-A400202-000-00
$131.04
39
HEXAGON FLANGE BOLT M6×12
GBT005789006
40
ENGINE RADIATOR ASSEMBLY
S05-A400100-000-01
$645.19
41
OIL RADIATOR ASSEMBLY
S05-A400200-000-02
$351.26
