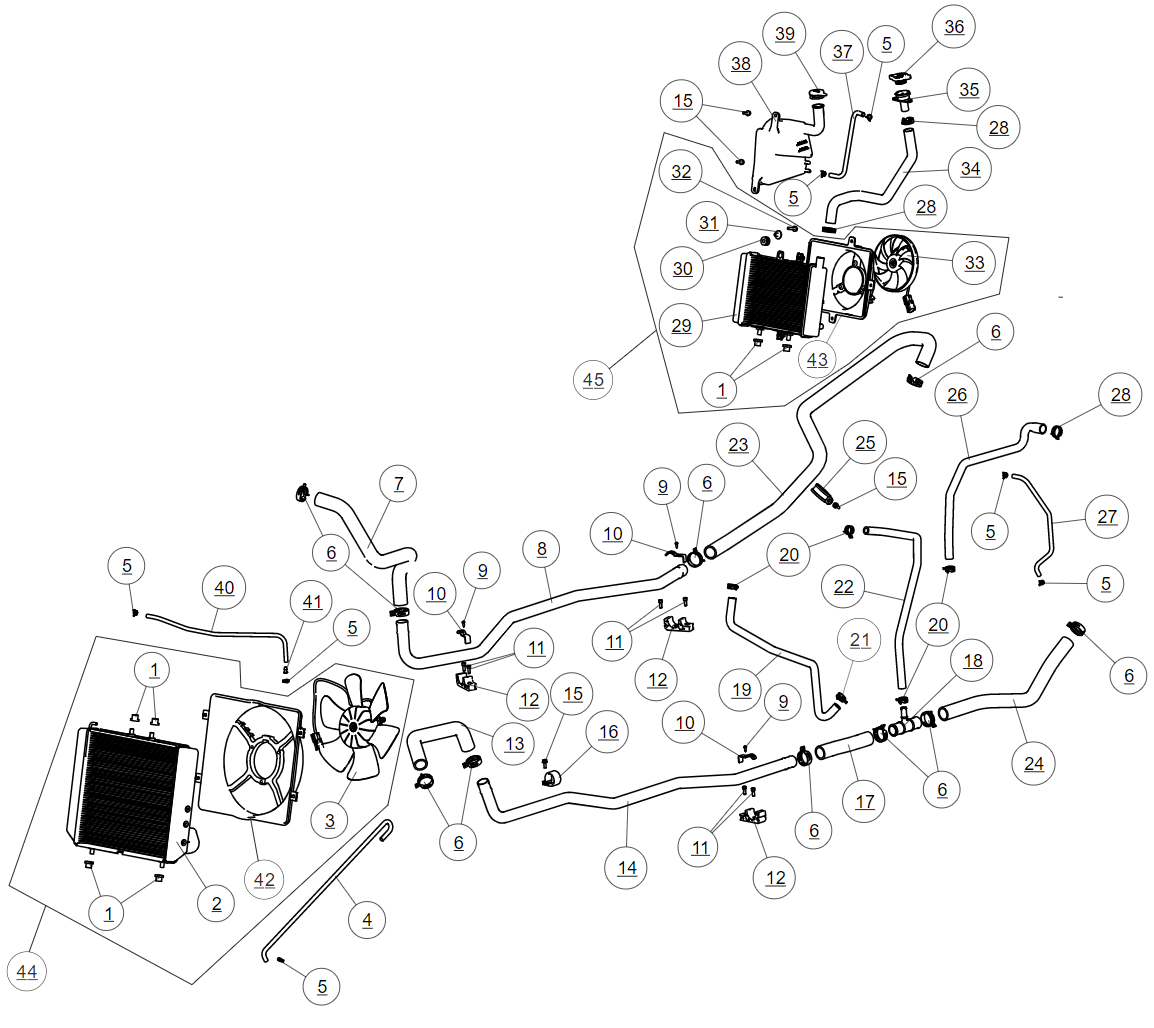

Cooling system COOLING SYSTEM

Cooling system COOLING SYSTEM

#

Item Name

Price

Qty

1

Motor Radiator T-Bushing Lower

S01A40103001

$2.72

2

RADIATOR BODY

S05-A400101-000-00

$440.44

3

FAN MOTOR ASSY

S05-A400102-000-00

$188.37

4

Rear Axle Snorkel

A02A10002001

$25.99

5

Steel belt Elastic hose clamp 11

QCT006211003

$2.59

6

Steel Belt Elastic Hose Clamp 38

BQ006211-03815-Z01

$4.55

7

Drive Motor Water Outlet Hose

S03-A400101-000-00

$28.21

8

Engine Water Outlet Aluminum Pipe

S03A42600001

$49.14

9

Cross Recessed Pan Head Tapping Screws St4.2×13

GBT000845009

$0.91

10

Water Pipe Snap Positioning Plate

S03C02200002

$19.80

11

Hexagon Socket Head Screw M6×16

GBT000701010

$0.91

12

Water Pipe Buckle

S03H20500001

$3.64

13

Engine Radiator Water Inlet Hose

S03-A400131-000-00

$20.02

14

Engine Water Intake Aluminum Pipe

S03-A400401-000-00

$46.41

15

Hexagon Flange Bolt M6×16

GBT005789007

$0.91

16

32 clamp

T05000080002

$3.64

17

Engine Front Water Inlet Hose

S05A41000001

$9.10

18

Engine Radiator Tee

S01A42500001

$10.92

19

Oil Cooling Water Outlet Pipe

S05A41400001

$15.47

20

Steel belt Elastic hose clamp 22

QCT006211009

$2.91

21

Steel Belt Elastic Hose Clamp 20

QCT006211015

$2.73

22

Oil Radiator Water Outlet Hose

S03A43600001

$15.47

23

Engine Water Outlet Hose

S05A40900001

$56.42

24

Engine Rear Water Inlet Hose

S05A41300002

$24.57

25

Adhesive strip assembly 38

T05000007001

$6.37

26

Engine exhaust pipe

S05A42800001

$19.11

27

Exhaust Pipe

S03A42900001

$3.64

28

Steel Belt Elastic Hose Clamp 28

QCT006211007

$3.64

29

Oil radiator body

S05-A400201-000-00

$201.11

30

S01_Motor radiator mounting bushing

S01A40105001

$4.00

31

S01_Motor radiator installation T-shaped sleeve

S01A40106001

$2.72

32

Hexagon Flange Bolt M6×25

GBT005789010

$0.91

33

Oil radiator fan

S05-A400202-000-00

$131.04

34

S05_Water inlet connecting hose

S05A41500001

$11.83

35

Water Filler Body

S01A40300001

$9.10

36

Cover gp-water fill

A01A41110002

$9.10

37

Overflow Pipe

S03A42300001

$3.64

38

Sub-tank assembly

S05A40200001

$25.48

39

Auxiliary Tank cover

U01A43042001

$2.73

40

Engine Radiator Breather

S03A43900001

$3.64

41

Cvt Outlet Pipe Drain Plug

S05A20904001

$1.94

42

Engine radiator cowl

S05-A400103-000-00

$29.12

43

Oil radiator cowl

S05-A400203-000-00

$15.47

44

Engine radiator assembly

S05-A400100-000-00

$678.86

45

Oil radiator assembly

S05-A400200-000-00

$343.07
