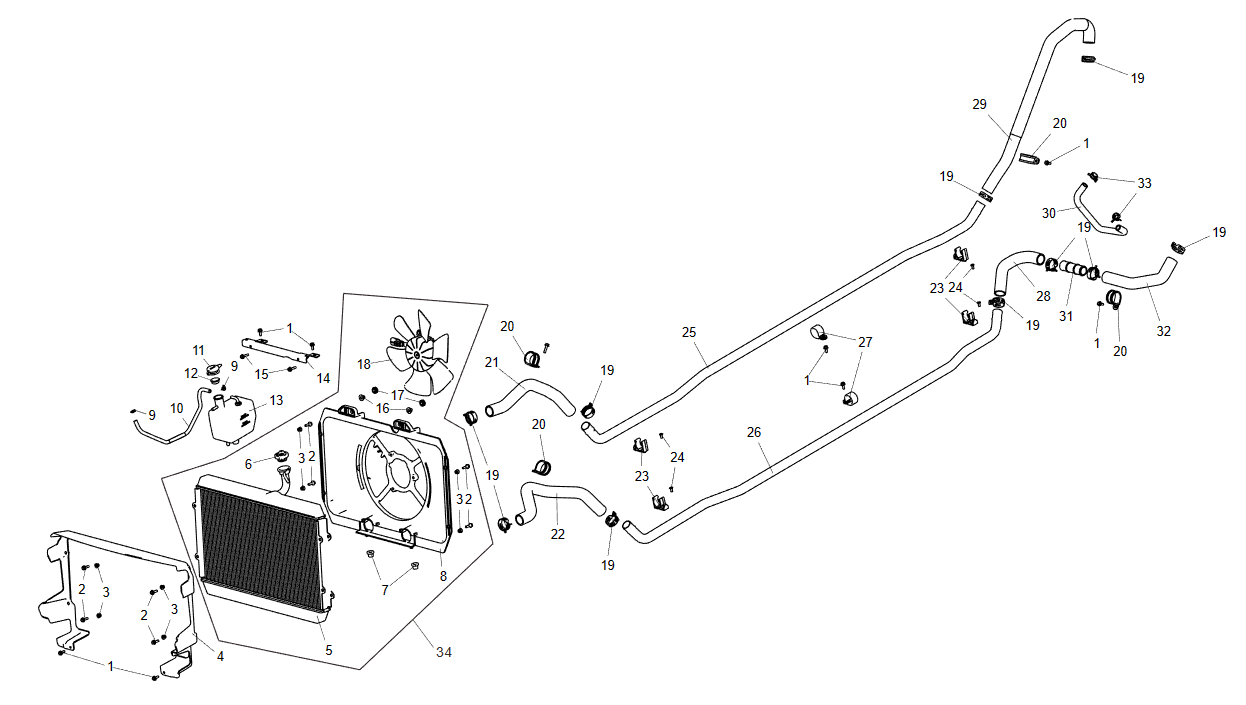

Cooling System Assembly

Cooling System Assembly

#

Item Name

Price

Qty

1

BOLT M6×16

GBT005789007

$0.91

2

HEXAGON FLANGE BOLT M6×20

GBT005789008

$1.82

3

NUT M6

GBT061831002

$0.91

4

radiator front air deflector

U03-A400103-000-00

$30.94

5

engine radiator body

U03-A400101-000-00

$442.26

6

TANK LID ASSY V

A01A41110002

$9.10

7

T-SLEEVE

S01A40103001

$2.72

8

fan shroud

U03-A400102-000-00

$79.17

9

CLAMP 11

QCT006211003

$2.59

10

RADIATOR REGATIVE PRESSURE PIPE

U09A43051001

$3.64

11

AUXILIARY WATER TANK COVER

U01A43042001

$2.73

12

WATER TANK PLUG

U01A43043001

$0.91

13

WATER TANK BODY

U01A43041004

$23.66

14

Radiator Mounting Bracket Assy

U03-C000010-DB0-00

$10.01

15

HEXAGON FLANGE BOLT M6×25

GBT005789010

$0.91

16

T BUSH V

U09A41105001

$10.92

17

I-SHAPED RUBBER RING V

U09A41104001

$2.73

18

engine fan

U09-A400102-000-00

$193.83

19

CLAMP(WIDTH 15)

BQ006211-03815-Z01

$4.55

20

38 rubber strip

T05000070001

$10.15

21

Radiator water inlet hose

U09-A420060-000-00

$20.02

22

U09 ENGINE FRONT WATER OUTLET HOSE

U09A42001001

$36.40

23

U09 WATER PIPE CLAMP

U09A42011001

$0.91

24

SCREW M6×14

GBT008191004

$0.91

25

Engine outlet aluminum pipe

U03-A420050-000-00

$75.53

26

Engine intake aluminum pipe

U03-A420040-000-00

$75.53

27

32 CLAMPS

T05000080002

$3.64

28

ENGINE REAR WATER INLET HOSE 1

U09A42003001

$20.93

29

ENGINE REAR WATER OUTLET HOSE

U09A42002001

$56.42

30

ENGINE OIL COOLING PIPE

U09A42008001

$8.19

31

CONNECTOR,TEE

S01A42500001

$10.92

32

ENGINE REAR WATER INLET HOSE 2

U09A42007002

$17.29

33

CLAMP 20

QCT006211015

$2.73

34

engine radiator assy

U03-A400100-000-00

$702.52
