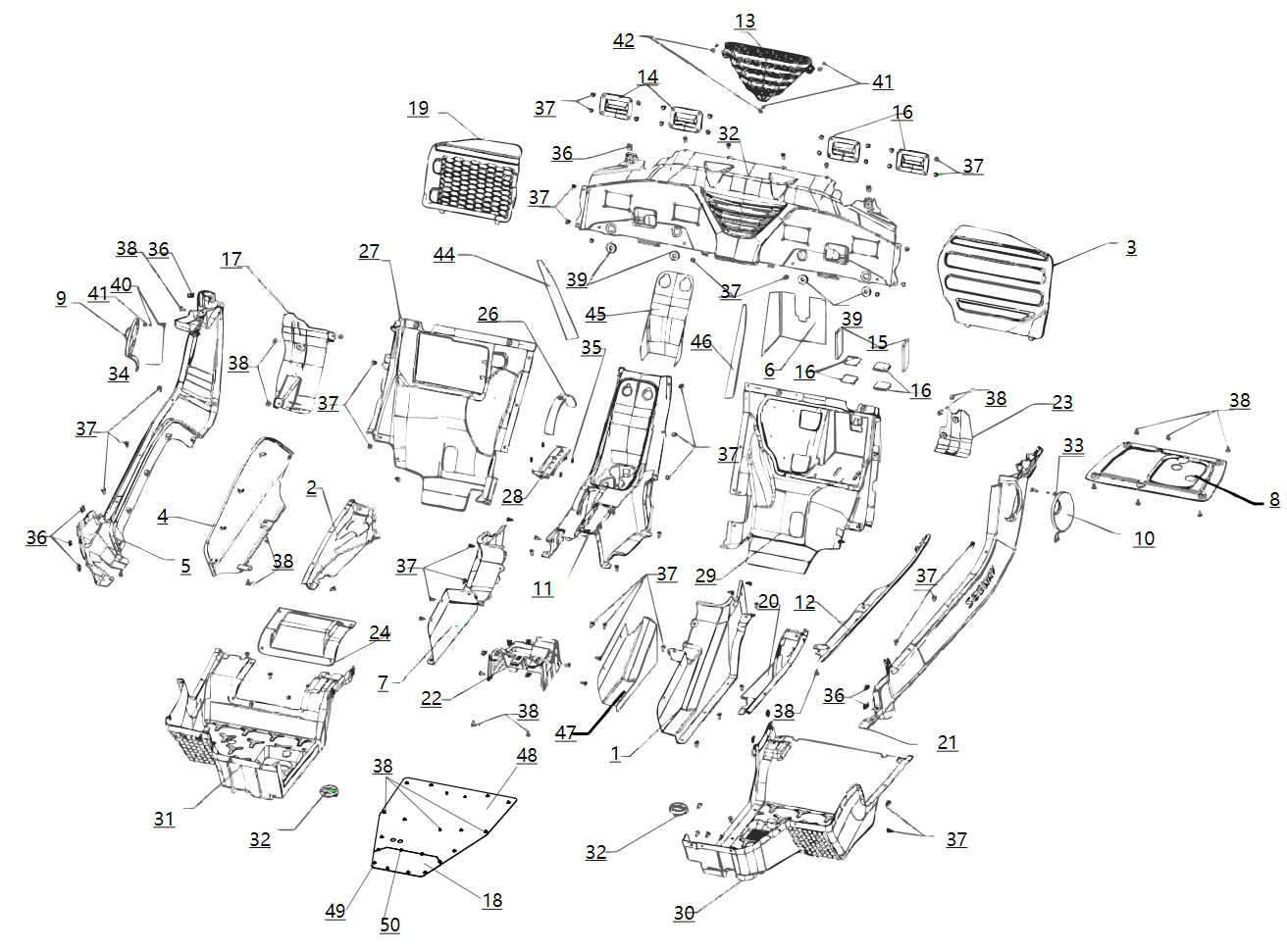

Central rubber and plastic parts CENTRAL RUBBER AND PLASTIC PARTS

Central rubber and plastic parts CENTRAL RUBBER AND PLASTIC PARTS

#

Item Name

Price

Qty

1

TRANSMISSION SHAFT LEFT COVER

S05-H127010-000-00

$34.58

2

RIGHT GUARD LINING

S01H13700001

$10.92

3

BATTERY MAINTENANCE COVER

S01H14100001

$23.66

4

RIGHT GUARD PLATE (FROSTED SILVER)

S01-H135000-PW2-00

$67.34

4

RIGHT GUARD PLATE (SILVER GRAY)

S01-H135000-PH1-00

$67.34

5

RIGHT GUARD

S01H13400001

$58.24

6

Insulation paper for left back panel

S01H10001001

$4.55

7

TRANSMISSION SHAFT RIGHT COVER

S01H12800001

$27.30

8

rear bottom plate

S01-H166000-0B0-00

$18.20

9

fuel filler cap

S01-H113000-0B0-00

$3.64

10

CHARGING COVER

S01-H112010-0B0-00

$3.64

11

CENTER GUARD

S01-H131010-000-00

$60.97

12

LEFT GUARD PLATE (FROSTED SILVER)

S01-H133000-PW2-00

$67.34

12

LEFT GUARD PLATE (SILVER GRAY)

S01-H133000-PH1-00

$67.34

13

AIR-INLET GRILLE RED

S01H14700002

$50.05

13

AIR-INLET GRILLE GREEN

S01H14700003

$50.05

14

SAFETY BELT RUBBER COVER

S01H20900001

$8.19

15

BATTERY BUFFER BLOCK

S01H22200001

$0.91

16

FOAM CUSHION

S01H21600001

$0.91

17

Fuel filler fender

S01-H197000-0B0-00

$8.19

18

FRONT FLOOR GUARD 1

S05-H166001-0B0-00

$141.05

19

AIR FILTER MAINTENANCE COVER

S01H14000001

$22.18

20

LEFT GUARD LINING

S01H13600001

$10.92

21

LEFT GUARD

S01H13200001

$58.24

22

FOOT PEDAL CONNECTING PLATE

S03-H199000-000-00

$15.47

23

CHARGING PORT MUDGUARD

S03H19600001

$3.64

24

GASOLINE PUMP MAINTENANCE COVER

S03H18800001

$15.47

25

Cargo box front cover

S05-H146000-0B0-01

$49.14

26

Shift trim cover skateboard

S05H10300001

$10.19

27

right back panel

S05-H139000-0B0-00

$77.35

28

S05_shift trim cover_PP_black_leather pattern

S05H10200001

$5.46

29

Left back panel

S05-H138000-0B0-00

$118.30

30

left foot pedal

S05-H101240-0B0-00

$86.45

31

right foot pedal

S05-H101980-0B0-00

$73.71

32

PEDAL SCREW COVER PP BLACK

U01H22001001

$1.82

33

RECTANGULAR MAGNET S 20×10×5

T01000006001

$3.64

34

RECTANGULAR MAGNET N 20×10×5

T01000006002

$3.64

35

4.2 Self-tapping screw splint

T04000002003

$0.91

36

M6 NUT CLIP

T04000002001

$0.91

37

EXPANSION BUCKLE COMPONENT

T04000003001

$1.16

38

HEXAGON SOCKET MUSHROOM HEAD SCREW

T03000007002

$0.91

39

RUBBER RING

T01000002001

$3.25

40

SCREW ST2.9×13

GBT000846001

$0.91

41

Screw ST4.2×13

GBT000845009

$0.91

42

LARGE WASHERS A GRADE 5

GBT000961001

$0.91

43

CROSS HEAD SCREWS ST4.2×13

GBT000845005

$0.91

44

RIGHT INSULATION PAPER OF MID GUARD

S05-H100022-000-01

$2.73

45

MID INSULATION PAPER OF MID GUARD

S05-H100020-000-01

$9.10

46

LEFT INSULATION PAPER OF MID GUARD

S05-H100021-000-01

$2.73

47

INSULATION PAPER OF SHAFT LEFT COVER

S05-H200005-000-00

$10.92

48

FRONT FLOOR GUARD 2

S05-H166021-0B0-00

$101.01

49

BOLT M6×16

GBT005789007

$0.91

50

WASHER

U01R10001001

$0.91
